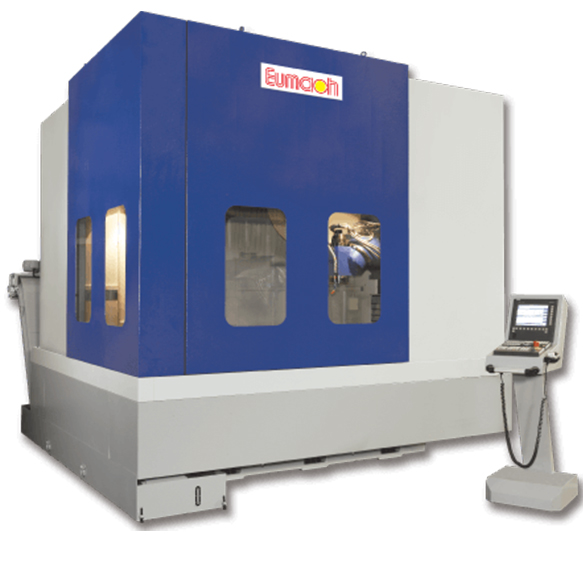

YZC-1650

Standard 24 automatic tool changer, option 32 / 40 / 60 stations ATC are available.
Standard automatic vertical & horizontal milling head with BT#50 / 3,500 RPM / 811 Nm
Standard Ø1,650 mm CNC rotary table, 8,000 kgs load.

( ) Option

Model	YZC-1650
Table (Y,Z axis )
Y axis : milling head forward & backward by sliding ram ( mm )	1,000
Z axis : milling head up & down by sliding saddle ( mm )	952
Rotary table ( C axis )
Table dimension ( mm )	Ø1,650
Table to floor ( mm )	929 included 30 leveling pads
Maximum loading ( kg )	8,000
Indexing increment	0.001° x 360,000 positions
T slots ( mm )	Radial type 12 slots with 22 H7
Vertical & horizontal milling head
Maximum speed ( RPM )	3,500
Spindle power (S1 / S6) ( kW )	17 / 22
Spindle taper ( BT# )	50
Front bearing diameter ( mm )	90
Vertical to horizontal time ( seconds )	12
Distances
Vert. spindle nose to table top ( mm )	0 ~ 952
Vert. spindle nose to table center ( mm )	1,149
Horiz. spindle center to table top ( mm )	0 ~ 1,002
Horiz. spindle nose to table center ( MM )	1,099
Axis Feed rate
Rapid feed Y / Z / C ( mm / mm / RPM )	10 / 10 / 4.16
Cutting feed ( m / min )	5
Axis Transmission
Y & Z linear axis ( mm )	Ø50 C3 ball screw
C rotary axis	Dual lead worm gear
Automatic tool changer
Tool holder type ( BT# )	50
Pull stud ( BT# )	50
Tools number ( pieces )	24
Max.tool dia. / length / weight ( mm / mm / kg )	Ø120 / 300 / 15
Tools exchanging method	swing arm at vertical position
Weight
Net ( before packing ) ( ton )	16
