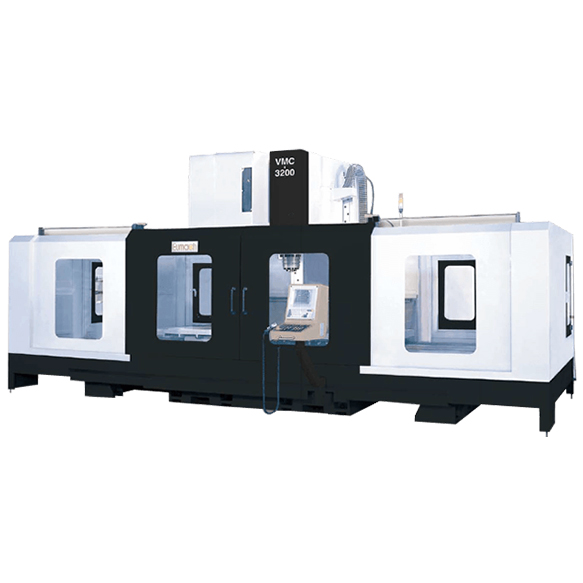

VMC-3200

Features

Categories: ,

Description

Features

  • Travel ( mm ) : 3,200 / 1,100 / 900
  • Spindle motor ( kW ) : 15 / 18.5 ~ 30 / 37
  • ATC : 24 ~ 40
  • Net weight ( kg ) : 24,000
  • 6 heavy duty box way in Y axis
  • Full guard & 40 ARM ATC are options.

Extra wide interior space

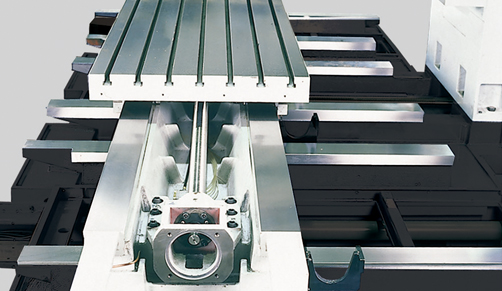

6 boxways base

Specification

( ) Option
Model VMC-3200
Table
Overall size ( mm ) 3,250 x 1,220
T slots ( size x No. x pitch ) ( mm ) 22 x 7 x 160
Max. loading ( kg ) 3,500
Travel
X / Y / Z axis ( opt. ) 3,200 / 1,100 / 900
Distances
Spindle to column ways ( mm ) 1,136
Spindle to table top ( mm ) 151 ~ 1,051 ( 186 ~ 1,086 )
Floor to table top ( mm ) 875
Spindle
Taper ( BT# ) 50 ( 40 )
Speed ( RPM ) 6,000 ( 10,000 )
Front bearing dia. ( mm ) 90
Motor ( kW ) 15 / 18.5 ~ 30 / 37
Axis motors: X / Y / Z
Power ( kW ) 4.8 / 7.4 / 4.8
Torque ( Nm ) 30 / 40 / 30
Feedrate: X / Y / Z
Cutting feedrate ( mm / min ) 1 ~ 8,000
Rapid feedrate X / Y / Z
Rapid ( m / min ) 15 / 15 / 15
Minmum setting 0.001
Automatic tool changer
Type of ATC ARM
No. of atc ( tools ) 24 ( 32, 40 )
Max. tool ( dia. / length ) ( mm ) 250 / 300
Max. tool weight ( kg ) 15
Tool to tool ( sec ) 10
Chip to chip 18
Ballscrews on 3 axis
Dia. x pitch ( mm x mm ) 63 / 63 / 63 x 10
Dia. x pitch ( Z axis ) ( mm x mm ) 50 x 10
Precision class ( C3 ) ( mm / 300 mm ) 0.008
Coolant & lubrication
Coolant motor power ( kW ) 0.86
Coolant tank volume ( L ) 350
Coolant motor capacity ( L / min ) 20
Lubrication motor power ( WATT ) 25 x 2
Lubrication tank volume ( L ) 4
Accuracy
Positioning ( Micron / mm ) ± 5/300
Repeatability ( Micron ) 3
Roundness ( mm ) 10 / 300
Miscellaneous
Net weight ( kg ) 24,000
Power required ( KVA ) 35
Pneumatic required ( kg / cm2) 7

Standard Accessories

  • table splash guard
  • 24 tools arm type ATC
  • Programmable coolant system
  • Automatic lubrication system
  • Spindle air blast system
  • Working lamp
  • Alarm lamp for abnormal situation
  • Indication lamp for dwell & end of job
  • Levelling bolts & pads
  • BT#50 spindle & ATC, HTD belt head
  • Pre-extensioned ballscrews
  • RS-232 terminal interface port
  • Machine & control manuals
  • Toolbox with spanners & wrenches
  • Screw chip conveyor rear side of saddle
