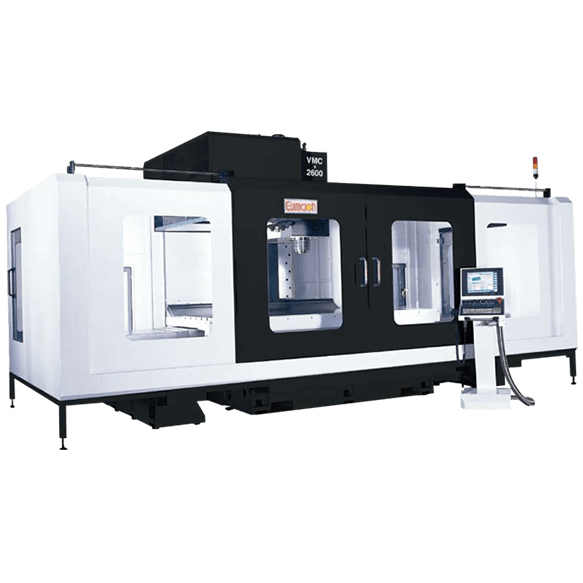

VMC-2600

Standard table splash guard

Column
The oversized box type column 908 mm ( L ) x 1,100 mm ( W ) x 2,450 mm ( H ). the best support at spindle head heavy cutting and column stiffness.
Table
Standard 2,650 mm x 1,220 mm extra wide working table handles big heavy workpiece.
Saddle
4.9 meters length super heavy saddle, guaranteed no table overhang for table movement.

( ) Option

Model	VMC-2600
Table
Overall size ( mm )	2,650 x 1,220
T slots ( size x No. x pitch ) ( mm )	22 x 7 x 160
Max. loading ( kg )	3,000
Travel
X / Y / Z axis ( opt. )	2,600 / 1,100 / 900
Distances
Spindle to column ways ( mm )	1,136
Spindle to table top ( mm )	151 ~ 1,051 ( 186 ~ 1,086 )
Floor to table top ( mm )	875
Spindle
Taper ( BT# )	50 ( 40 )
Speed ( RPM )	6,000 ( 10,000 )
Front bearing dia. ( mm )	90
Motor ( kW )	15 / 18.5 ~ 30 / 37
Axis motors: X / Y / Z
Power ( kW )	4.8 / 7.4 / 4.8
Torque ( Nm )	30 / 40 / 30
Feedrate: X / Y / Z
Cutting feedrate ( mm / Min. )	1 ~ 8,000
Rapid feedrate X / Y / Z
Rapid ( M / Min. )	15 / 15 / 15
Minmum setting	0.001
Automatic tool changer
Type of atc	ARM
No. of atc ( tools )	24 ( 32, 40 )
Max. tool ( dia. / length ) ( mm )	250 / 300
Max. tool weight ( kg )	15
Tool to tool ( SEC )	10
Chip to chip	18
Ballscrews on 3 axis
Dia. x pitch ( mm x mm )	63 / 63 / 63 x 10
Dia. x pitch ( Z axis ) ( mm x mm )	50 x 10
Precision class ( C3 ) ( mm / 300 mm )	0.008
Coolant & lubrication
Coolant motor power ( kW )	0.86
Coolant tank volume ( L )	350
Coolant motor capacity ( L / min )	20
Lubrication motor power ( WATT )	25 x 2
Lubrication tank volume ( L )	4
Accuracy
Positioning ( Micron / mm )	± 5/300
Repeatability ( Micron )	3
Roundness ( mm )	10 / 300
Miscellaneous
Net weight ( kg )	22,000
Power required ( KVA )	35
Pneumatic required ( kg / cm²)	7
