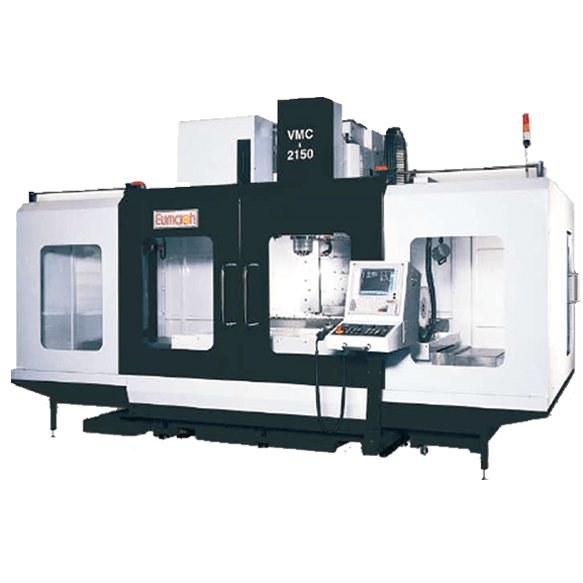

| Table |
| Overall size ( mm ) |
2,200 x 1,220 |
| T slots ( size x No. x pitch ) ( mm ) |
22 x 7 x 160 |
| Max. loading ( kg ) |
2,500 |
| Travel |
| X / Y / Z axis ( opt. ) |
2,150 / 1,100 / 900 |
| Distances |
| Spindle to column ways ( mm ) |
1,136 |
| Spindle to table top ( mm ) |
151 ~ 1,051 ( 186 ~ 1,086 ) |
| Floor to table top ( mm ) |
875 |
| Spindle |
| Taper ( BT# ) |
50 ( 40 ) |
| Speed ( RPM ) |
6,000 ( 10,000 ) |
| Front bearing dia. ( mm ) |
90 |
| Motor ( kW ) |
15 / 18.5 ~ 30 / 37 |
| Axis motors: X / Y / Z |
| Power ( kW ) |
4.8 / 7.4 / 4.8 |
| Torque ( Nm ) |
30 / 40 / 30 |
| Feedrate: X / Y / Z |
| Cutting feedrate ( mm / min ) |
1 ~ 8000 |
| Rapid feedrate X / Y / Z |
| Rapid ( m / min ) |
15 / 15 / 15 |
| Minmum setting |
0.001 |
| Automatic tool changer |
| Type of ATC |
ARM |
| No. of atc ( tools ) |
24 ( 32, 40 ) |
| Max. tool ( dia. / length ) ( mm ) |
250 / 300 |
| Max. tool weight ( kg ) |
15 |
| Tool to tool ( SEC ) |
10 |
| Chip to chip |
18 |
| Ballscrews on 3 axis |
| Dia. x pitch ( mm x mm ) |
63 / 63 / 63 x 10 |
| Dia. x pitch ( Z axis ) ( mm x mm ) |
50 x 10 |
| Precision class ( C3 ) ( mm / 300 mm ) |
0.008 |
| Coolant & lubrication |
| Coolant motor power ( kW ) |
0.86 |
| Coolant tank volume ( L ) |
350 |
| Coolant motor capacity ( L / min ) |
20 |
| Lubrication motor power ( WATT ) |
25 x 2 |
| Lubrication tank volume ( L ) |
4 |
| Accuracy |
| Positioning ( Micron / mm ) |
± 5/300 |
| Repeatability ( Micron ) |
3 |
| Roundness ( mm ) |
10 / 300 |
| Miscellaneous |
| Net weight ( kg ) |
21,000 |
| Power required ( KVA ) |
35 |
| Pneumatic required ( kg / cm2) |
7 |
