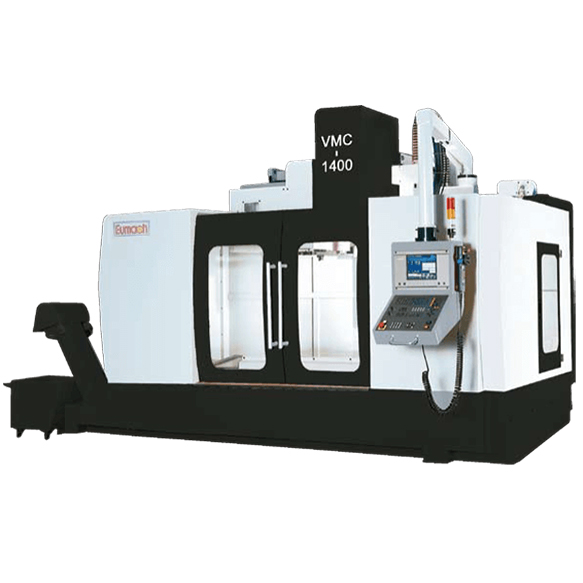

VMC-1400

Description

VMC-1400: 1,400 mm x 700 mm x 760 mm

All castings are stress relieved and seasoning treated for long term accuracy and long service life.
3-Axis by using box type sideway achieve heavy machiningb ability and overall, a structure of outstanding stability. All slideways are hardened, precision ground and coated with TURCITE-B and sophisticate hand-scraping allowing a low friction and steaby movement Y-axis with 4 guideway box type sideway, X axis travers with full support.

( ) Option

Model	VMC-1400
Table
Overall size ( mm )	1,500 x 710
Working area ( mm )	1,500 x 710
T slots ( size x No. x pitch ) ( mm )	18 x 6 x 125
Max. loading ( kg )	1,500
Travel
X / Y / Z axis ( mm )	1,400 / 700 / 760
Distances
Spindle to column ways ( mm )	760
Spindle to table top ( mm )	125 ~ 885
Floor to table top ( mm )	850
Spindle
Taper ( BT# )	50
Speed ( RPM )	6,000
Front bearing dia. ( mm )	90
Motor ( kW )	15
Axis motors: X & Y & Z
Heidenhain / Siemens / Selca ( Nm )	20
Cutting federate ( mm / min )	1 ~ 8,000
Rapid federate X / Y / Z ( m / min )	15 / 15 / 12
Minmum setting ( mm )	0.001
Automatic tool changer
Type of atc	Carrousel
No. of atc ( tools )	20
Max. tool ( dia. / length ) ( mm )	125 / 300
Max. tool weight ( kg )	15
Tool to tool (sec)	10
Chip to chip (sec)	20
Ballscrews on 3 axis
Dia. x pitch ( X & Y axis ) ( mm x mm )	45 x 10
Dia. x pitch ( Z axis ) ( mm x mm )	50 x 10
Precision class ( C3 ) ( mm / 300 mm )	0.008
Coolant & lubrication
Coolant motor power ( kW )	0.86
Coolant tank volume ( L )	120
Coolant motor capacity ( L / min )	20
Lubrication motor power ( WATT )	15
Lubrication tank volume ( L )	2
Accuracy
Positioning ( mm )	JIS 6338 : ± 0.005 / 300, VDI 3441 : P0.014
Repeatability ( mm )	JIS 6338 : ± 0.003, VDI 3441 : PS0.01
Roundness ( mm )	JIS6338：± 0.01 / 300 Dia.
Miscellaneous
Net weight ( kg )	13,000
Power required ( KVA )	25
Pneumatic required ( kg / cm²)	7
