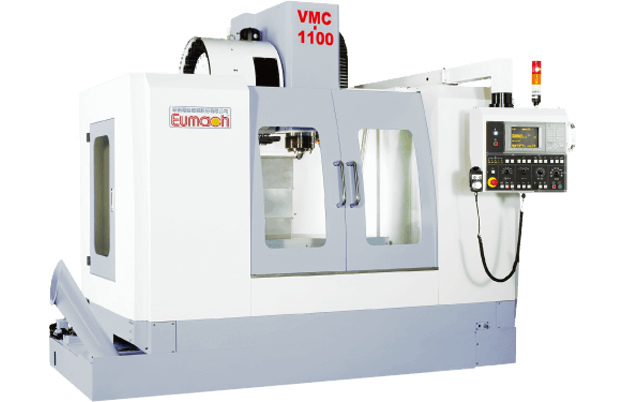

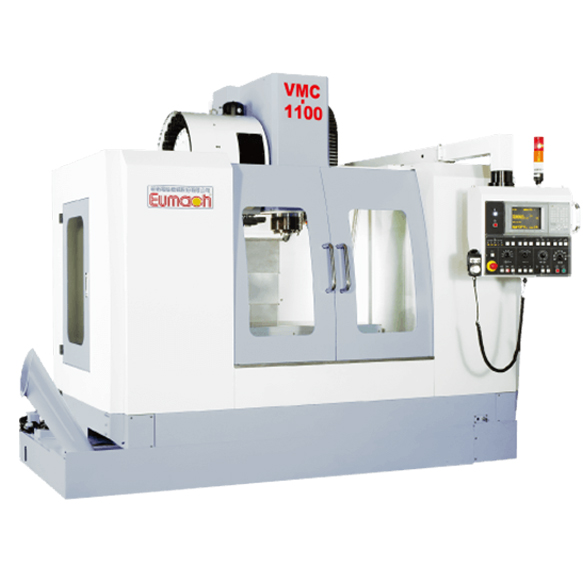

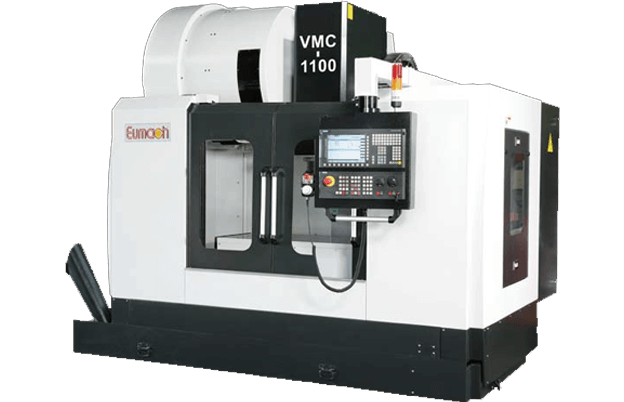

| Spindle |
| Taper ( BT# ) |
#40 |
#50 |
| Speed ( RPM ) |
8,000 ( ~15,000 ) |
6,000 ( ~10,000 ) |
| Front bearing dia. ( mm ) |
70 |
90 |
| Motor ( kW ) |
7.5 / 11 ( ~22/26 ) |
| Table |
| Overall size ( mm ) |
1,270 x 640 |
| T slots ( size x No. x pitch ) ( mm ) |
18 x 5 x 125 |
| Max. loading ( kg ) |
1,200 |
| Travel |
| X / Y / Z axis ( mm ) |
1,100 / 610 / 610 |
| X / Y / Z slide way number ( PCS ) |
2 / 4 / 2 |
| Distances |
| Spindle to column ways ( mm ) |
660 |
| Spindle to table top ( mm ) |
100 ~ 710 |
110 ~ 720 |
| Floor to table top ( mm ) |
895 |
| Axis motors |
| X/Y/Z axis ( Nm ) |
12 / 22 / 12 |
| X/Y/Z motor power ( kW ) |
3 / 4 / 3 |
| Z axis balance design Z |
Pneumatic |
| Cutting federate ( mm / min ) |
1 ~ 5,000 ( ~10,000 ) |
| Rapid federate ( m / min ) |
24 / 24 / 24 ( ~36 / 36 / 30 ) |
| ATC |
| Type |
Carousel |
Arm |
| No. of ATC |
20 ( -32 ) |
24 |
| Max. tool dia. / length ( mm ) |
106 / 300 |
125 / 300 |
| Max. tool weight ( kg ) |
7 |
15 |
| Tool to tool ( Sec ) |
6 |
5 |
| Chip to chip ( Sec ) |
12 |
10 |
| Ballscrews |
| Dia. x pitch ( X & Y axis ) ( mm x mm ) |
40 x 12 |
| Dia. x pitch ( Z axis ) ( mm x mm ) |
40 x 12 |
| Precision class ( C3 ) ( mm / 300 mm ) |
0.008 |
| Coolant & lubrication |
| Coolant motor power ( kW ) |
0.86 |
| Coolant tank volume ( L ) |
200 |
| Coolant motor capacity ( L / min ) |
20 |
| Lubrication motor power ( WATT ) |
25 |
| Lubrication tank volume ( L ) |
2 |
| Accuracy |
| Positioning ( mm ) |
VDI 3441：P 0.015 |
| Repeatability ( mm ) |
VDI 3441：PS0.01 |
| Roundness ( mm ) |
JIS6338：± 0.01 mm / 300 mm Dia. |
| Miscellaneous |
| Net weight ( kg ) |
7,300 |
8,500 |
| Power required ( KVA ) |
25 |
| Pneumatic required ( kg / cm2) |
7 |
