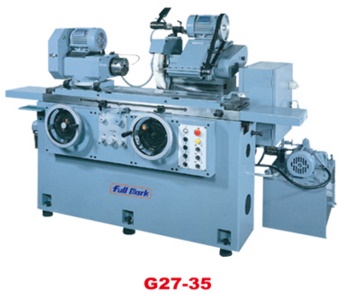

Universal Cylindrical Grinder

  • G27-40 G27-55 G27-75
  • G35-55 G35-75
  • G30-100
  • G38-100
Category:

Description

SPECIFCATIONS G27-40 G27-55 G27-75 G35-55 G35-75 G30-100 G38-100
Swing over table 270mm 350mm 300mm 380mm
Distance between centers 400/550/750mm 550 / 750mm 1000mm
Max.workpiece weight (kg) on Work Head 20 Kgs 40 Kgs
Wheelhead swivel angle ±15º
Wheel dimensions 405 OD x45 Wx127mm ID | or 405 OD x45 Wx152.4mm ID
Workhead swivel angle 30º/90º
Wheelhead spindle speed 1650 / 1850 / 2100rpm 1650 / 1850rpm
Workhead spindle speed (50Hz) 50~250rpm (6) (60Hz) 60~300rpm (6) (50Hz) 30~150rpm (Variable) (60Hz) 60~300rpm (Variable)
Workhead Center Taper MT 4 MT 5
Wheelhead travel 250mm
Table swivel angle 6°/9° (for model:35 & 55) 4°/9° (for model:75) 4°/9°
Work head swivel angle 30°/90°
Work Head Hole dia. 25 mm 30mm
Auto table feed 50~4000mm/min. (Variable) 50~3000mm/min. (Variable)
Wheel Spindle Motor 5HP 5HP (Option 7.5HP)
Work Head motor 1/2 HP 1 HP
Hydraulic pump 1 HP 2 HP
Machine weight (kgs) 1,800 Kg 2,000 Kg 2,300 Kg 3,300 Kg
End
