5 Axis Mill Turn Machining
The most efficient & intelligent machining concept for multi-sided high performance machining, increase productivity, flexibility and repeatability.

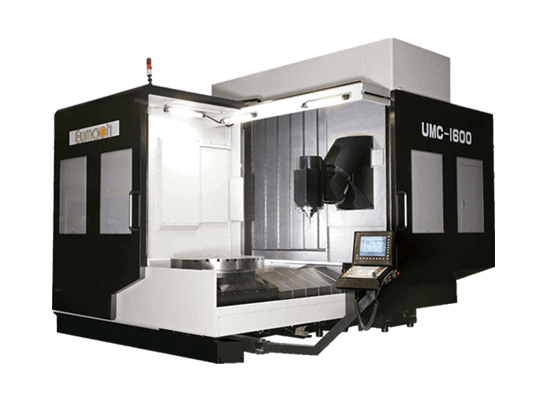

Sliding front & side doors with a super wide top opening, this make very easily for straight forward loading awkard shaped workpiece.
Features
- Latest innovation of combination of both bridge type machine and traveling column type machine design advantage
- Large 1,620 mm x 1,260 mm x 1,050 mm three linear axis travel
- Ø1,320 mm CNC continuous rotary table with 4000 kgs load
- 0.001° swivel milling head with torque motor driven
- Standard 3 axis linear scales & 2 axis absolute rotary encoder
- Powerful motor spindle HSK-A100 / 37.4 kW & 54 kW / 170 Nm & 390 Nm / 8,000 RPM with Ø100 mm ceramic bearings
- Patented X axis 4 slide ways design ( M417981 ) with maximum rigidity to ensure heavy cutting
