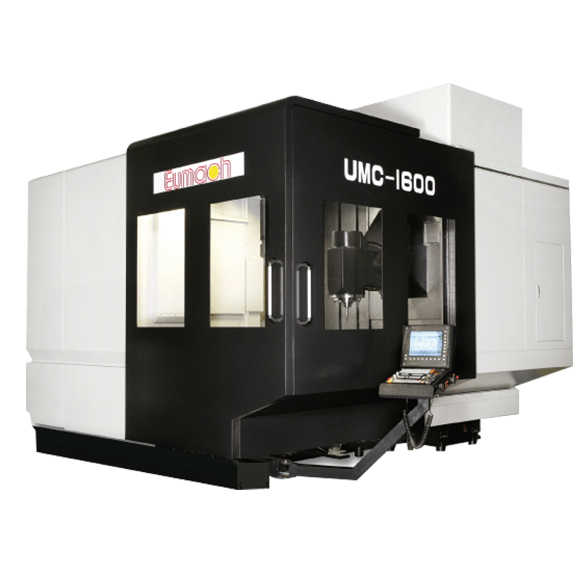

UMC-1600

Description

Sliding front & side doors with a super wide top opening, this make very easily for straight forward loading awkard shaped workpiece.

Latest innovation of combination of both bridge type machine and traveling column type machine design advantage
Large 1,620 mm x 1,260 mm x 1,050 mm three linear axis travel
Ø1320 mm CNC continuous rotary table with 4,000 kgs load
0.001° swivel milling head with torque motor driven
Standard 3 axis linear scales & 2 axis absolute rotary encoder
Powerful motor spindle HSK-A100 / 37.4 kW & 54 kW / 170 Nm & 390 Nm / 8,000 RPM with Ø100 mm ceramic bearings
Patented X axis 4 slide ways design (M417981 ) with maximum rigidity to ensure heavy cutting

Model	UMC-1600
Travel
Linear axis X / Y / Z	1,620 / 1,260 / 1,050
Swivel head ( B axis )
Vertical to horizontal time	3 seconds
Transmission	DD torque motor
Rotary angle	+10° / -190°
Motor spindle
Maximum spindle speed ( RPM )	8,000
Spindle power S1 / S6 ( kW )	37.4 / 54
Spindle torque S1 / S6 ( Nm )	170 / 390
Spindle taper	HSK-A100 / BT / CAT / SK#50
Front bearing diameter ( mm )	100
Distances
V : spindle nose to table top ( mm )	150 ~ 1,200
H : spindle center to table top ( mm )	100 ~ 1,150
V : spindle nose to table center ( mm )	-300 ~ 960
H : spindle center to table center ( mm )	-250 ~ 1,010
Spindle center to column	1,105
Rotary table ( C axis )
Table dimension ( mm )	Ø1,320
Table to floor ( mm )	1,085
Maximum loading ( kg )	4,000
Maximum rotation ( RPM )	30
Transmission	DD torque motor
Indexing increment ( degree )	0.001
Ball screw
X / Y / Z Diameter x pitch ( mm )	Ø55/ 55 / 63 x 16 / 12 / 12
X / Y / Z axis Roller guide
Number x width ( mm )	4 / 2 / 2 slide ways x 55
Runner blocks number	8 / 4 / 6
Feed rate
Rapid feed X/Y/Z ( m / min )	24 / 24 / 24
Cutting feed ( m / min )	20 / 20 / 20
ATC
Tools number ( pieces )	60
Max.tool dia. / length / weight	150 mm / 350 mm / 20 kgs
Tools exchanging position	horizontal
Weight
Net Weight ( kg )	32,000
CNC
Brands	Heidenhain & Siemens
