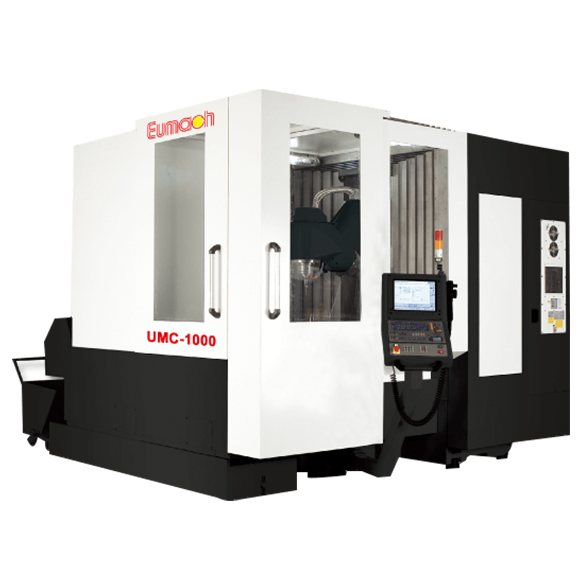

| Travel |
| Linear axis X / Y / Z |
1,000 / 800 / 700 |
| Swivel head B axis |
0° ~ 180° |
| Rotary table C axis |
0.001 degree x 360,000 |
| Swivel head ( B axis ) |
| Maximum spindle speed ( RPM ) |
14,000 ( 18,000, 24,000 ) |
| Spindle power & torque |
29.3 & 35 kW, 70 & 160 Nm ( S1 & S6) |
| Spindle taper |
BT ( CAT/SK ) 40, ( HSK-A63 ) |
| Front bearings diameter ( mm ) |
70 |
| Vertical spindle nose to table ( mm ) |
100 ~ 800 |
| Hor.spindle center to table top ( mm ) |
50 ~ 750 |
| Hor.spindle nose to table center ( mm ) |
-230 ~ 570 |
| Rotary table ( C axis ) |
| Table dimension ( mm ) |
800 X 1,000 |
| Maximum loading ( kg ) |
1,500 |
| Indexing increment ( degree ) |
0.001 |
| T slots ( size x No. x pitch ) ( mm ) |
18 x 7 x 100 |
| Table top to floor ( mm ) |
1,000 |
| Feed rate |
| Rapid linear axis X/Y/Z ( m ) |
24 / 24 / 24 |
| Rotary axis B/C ( RPM ) |
10 ( 60 ) |
| Cutting feed ( m/min ) |
20 |
| Transmission |
| Linear axis XYZ |
Ø50 mm C3 ball screw |
| Swivel head B axis |
Torque motor |
| Torque motor |
Worm wheel ( Torque motor ) |
| Axis Accuracy ( VDI3441 ) |
| Positioning linear axis XYZ / BC |
12 microns / 10″ |
| Repeatability linear axis XYZ / BC |
8 microns / 5″ |
| ATC |
| Tools number |
40 (52, 80) stations |
| Max.tool dia. / length / weight |
120 mm / 300 mm / 7 kgs |
| Tools exchanging |
vertical position |
| Weight |
| Net Weight ( ton ) |
15 |
