| Fixed Table |
| Overall size |
2,400, 3,400, 4,400, 5,400 x 700 ( 1,000 ) |
| T slots ( size x no x pitch ) ( mm ) |
18 x 7 x 100 ( 125 ) |
| Max. loading ( KG ) |
2,000 ~ 4,000 |
| Rotary tables |
| Table diameter ( mm ) |
Ø700 ( 1,000 ) |
| Table type |
DD motor only |
| Table rotation speed ( RPM ) |
30 |
| Maximum load ( kg ) |
500 ( 1,000 ) |
| Travel |
| X / Y / Z linear axis ( mm ) |
2,320, 3,320, 4,320, 5,320 / 760 ( 1,000 ) / 760 ( 1,000 ) |
| A / B / C rotary axis |
B / C : ±120°/ 0.001° x 360,000 |
| Distances |
| Spindle ( V ) to column way ( mm ) |
891 ( 1,281 ) |
| Spindle ( V ) to table top ( mm ) |
115 ~ 875 ( 300 ~ 1,300 ) |
| Floor to fixed table top ( mm ) |
860 ( 1,051 ) |
| B axis swivel spindle |
| Driven system |
DD motor |
| Spindle ( Swivel milling head B axis ) |
| Speed ( RPM ) |
14,000 ( 18,000, 24,000 ) |
| Taper |
BT ( CAT / SK ) 40 ( or HSK-A63 ) |
| Front bearing dia. ( mm ) |
70 |
| Motor power ( kW ) |
29.3 / 36 ( ~ 34 / 42 ) |
| Feed Rates: X / Y / Z |
| Cutting feedrate ( m ) |
10 |
| Rapid feedrate ( m ) |
30 / 24 / 24 / 18 x 30 x 30 |
| Automatic Tool Changer |
| Type of ATC |
Swing Arm |
| No. of atc |
24 ( 32, 40, 52 ) |
| Max. tool ( dia. / length ) ( mm ) |
150 / 300 |
| Max. tool weight ( Kg ) |
7 |
| Tool to tool (°) |
3 |
| Chip to chip (°) |
10 |
| Ballscrews on 3 Axis |
| Diameter ( mm ) |
63 / 70 / 80 x 50 x 50 |
| Precision class ( mm ) |
C3, 0.008 / 300 |
| Coolant motor power ( kW ) |
1.27 |
| Coolant tank volume ( L ) |
600 ( 1,000 ) |
| Coolant motor capacity ( L / Min. ) |
20 |
| Lubriccation motor power ( WATT ) |
25 |
| Lubrication tank voume ( L ) |
4 |
| Miscellaneous |
| Net weight ( kg ) |
22,000 ~ 40,000 |
| Pneumatic required ( kg ) |
6 |
| Guarding |

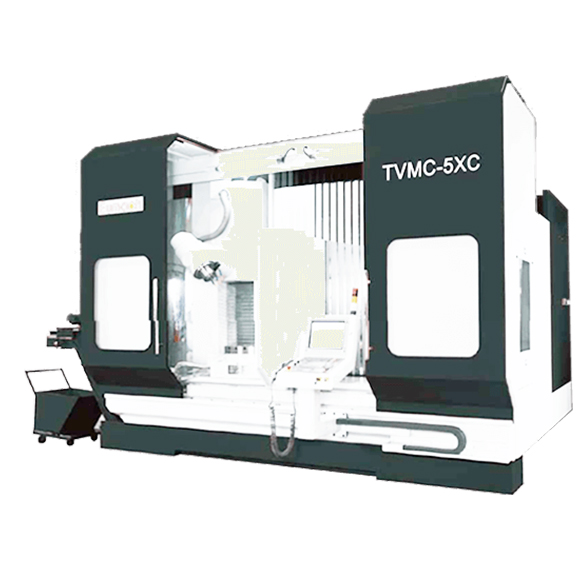

Full guard & roof except TVMC-5000 is half guard |
| CNC Control Available |
Heidenhain or Siemens |
