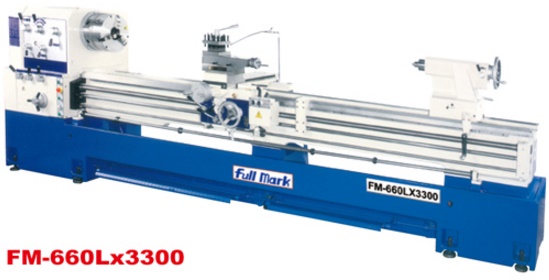

Precision High Speed Lathe
- FM-560Lx1000 FM-560Lx1500 FM-560Lx2000 FM-560Lx2500 FM-560Lx3300 FM-560Lx4300
- FM-660Lx1000 FM-660Lx1500 FM-660Lx2000 FM-660Lx2500 FM-660Lx3300 FM-660Lx4300
- FM-760Lx1000 FM-760Lx1500 FM-760Lx2000 FM-760Lx2500 FM-760Lx3300 FM-760Lx4300
Description
| SPECIFCATIONS |
FM-560Lx1000 FM-560Lx1500 FM-560Lx2000 FM-560Lx2500 FM-560Lx3300 FM-560Lx4300 |
FM-660Lx1000 FM-660Lx1500 FM-660Lx2000 FM-660Lx2500 FM-660Lx3300 FM-660Lx4300 |
FM-760Lx1000 FM-760Lx1500 FM-760Lx2000 FM-760Lx2500 FM-760Lx3300 FM-760Lx4300 |
|
L SERIES: Bed width 400mm |
| Swing over bed |
560mm |
660mm |
760mm |
| Swing over gap |
788mm |
890mm |
990mm |
| Centers Distance |
1000mm,1500mm,2000mm,2500mm,3300mm,4300mm |
| Bed Width |
400mm (15 3/4″) |
| Spindle Nose |
ASA D1-8 [ D1-11 OPT ] |
ASA D1-11 |
| Spindle Bore |
85mm [ 115mm OPT.) |
115mm |
| Taper of Spindle Bore |
MT7 |
| Spindle Speeds |
15~1500rpm(12 steps) [10~1000rpm 12 steps OPT] |
10~1000rpm(12 steps) |
| Inch Threads Range |
2~56 TPI |
| Metric Threads Range |
P0.5~P14 |
| Taper of Tail Center |
MT5 |
| Tail Spindle Travel |
165mm |
| Main Drive Motor |
10HP 4P [ 15HP OPT.] |
10HP 6P [ 15HP 6P OPT.] |
| Gross Weight (kgs) |
2300,2650,3050, 3300,3770,5030 |
2380,2730,3130, 3380,3850,5110 |
2460,2810,3210, 3460,3930,5190 |
| End |
