Precision Engine Lathe
- FM-1340
- FM-1330
- FM-1440

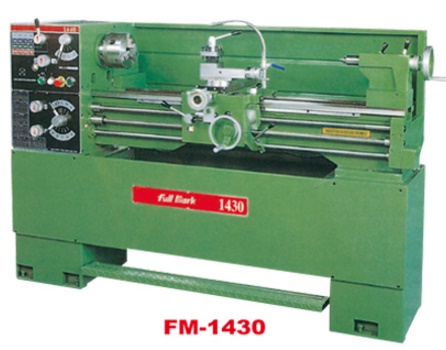

- FM-1430
Description
| SPECIFCATIONS |
FM-1340 |
FM-1330 |
FM-1440 |
FM-1430 |
| Swing over bed |
330mm (13”) |
356mm (14”) |
| Swing over cross slide |
195mm |
220mm |
| Swing over gap |
490mm |
515mm |
| Bed width |
190mm |
| Centers Distance |
1000mm (40”) |
750mm (30”) |
1000mm (40”) |
750mm (30”) |
| Spindle speed |
50~2000rpm (12) |
50-2000rpm (12) |
| Spindle bore |
38mm |
| Spindle nose |
D1-4 Camlock |
| Cross slide Travel |
165mm |
| Taper of Spindle bore |
M.T.No.5 |
| Metric thread |
0.4~7mm (32) |
0.4~7mm(32) |
0.4-7mm(32) |
| Inch thread |
4-56 TPI (32) |
| Motor |
3HP |
3 HP |
| Machine weight |
700 Kgs |
650 Kgs |
750 Kgs |
700 Kgs |
| Packing |
1955x762x1448mm |
1702x762x1448mm |
1955x762x1474mm |
1702x762x1474mm |
| End |
