5 Axis Machining
Traveling column horizontal milling machine
Significant technical features and advantages of MB series floor type horizontal milling machines :
- Large travel choices
X axis : 1,260 mm ~ 8,000 mm, Y axis : 900 mm ~ 1,500 mm, Z axis : 800 mm ~ 1,200 mm - Travelling column on 3 axis & fixed table standard design for an almost no weight limit work piece.
- Pendulum machining reduces much more down time than traditional twin pallet changer system.
- Extra long fixed table up to 8 meters for ease of workpiece location and setting.
- Much more expansion possibility to suit individual applications, such as additional milling heads,table group, Automatic tool changer and CNC rotary tables etc. up to 5 axis simultaneious.

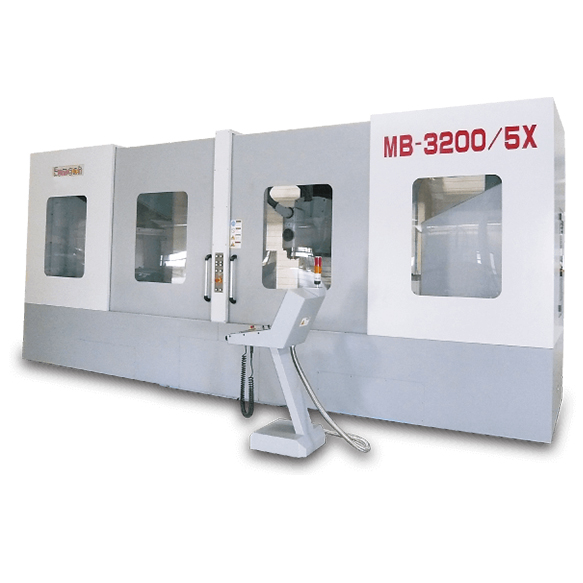

3,200 / 900 / 800 mm travel, swivel head left & right +- 120 deg. BT#40 / 14,000 RPM
3,200 / 1,200 / 1,500 mm travel, universl head, HSK-A100 / 12,000 RPM, 800mm dia. integrated torque table
