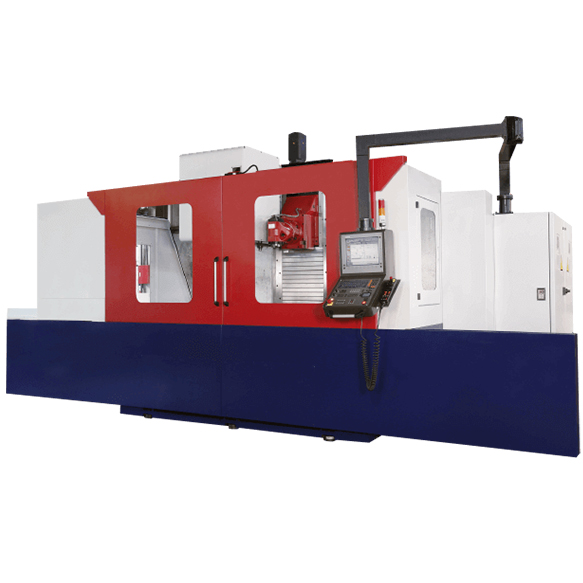

MB-3200

Large travel choices : X axis : 1,260 mm ~ 8,000 mm, Y axis : 900 mm ~ 1,500 mm, Z axis : 800 mm ~ 1,200 mm
Travelling column on 3 axis & fixed table standard design for an almost no weight limit work piece.
Pendulum machining reduces much more down time than traditional twin pallet changer system.
Extra long fixed table up to 8 meters for ease of workpiece location and setting.
Much more expansion possibility to suit individual applications, such as additional milling heads, table group, Automatic tool changer and CNC rotary tables etc. up to 5 axis simultaneious.

( ) Option

Model	MB-3200
Table
Overall size ( mm )	3,580 x 930
T slots ( size x No. x pitch ) ( mm )	22 x 7 x 125
Maximum loading ( kg )	25,000
Travel
X / Y / Z axis ( mm )	1,500 / 2,500 / 3,200 x 900 ( 1,200, 1,500 ) x 800 ( 1,000, 1,200 )
Distances
Spindle nose to table edge ( mm )	-81.5 ~ 718.5 ( -110.5 ~ 889.5 )
Spindle center to table top ( mm )	203 ~ 1,103 ( 237 ~ 1,437 )
Spindle nose to column surface ( mm )	250 (350)
Floor to table ( mm )	1,151
Spindle & Axis motor
Speed ( RPM )	6,000
Taper ( BT# )	50
Motor ( kW )	15 / 18.5
X & Z axis ( Nm )	30 / 22
Y axis ( Nm )	22 with brake
Feedrate
Cutting feedrate ( mm / min )	1 ~ 5,000
Rapid feedrate ( m / min )	10 ( 15 )
Minmum Setting ( mm )	0.001
Automatic tool changer (Optional)
Type of ATC	Swing ARM with Rail
No. of ATC ( Tools )	24, 32, 40, 60
Max. tool ( dia. / length ) ( mm )	250 / 300
Max. tool weight ( kg )	15 ( 25 )
Ballscrews on X / Y / Z
Diameter x Pitch ( mm )	63 / 50 / 50 x 10
Precision class ( C3 ) ( mm / 300 mm )	0.008
Coolant & lubrication
Coolant motor power ( kW )	0.86
Coolant tank volume ( L )	350
Coolant motor capacity ( L / min )	20
Lubrication motor power ( WATT )	25
Accuracy (JIS 6338)
Positioning ( mm )	±0.005 / 300
Repeatability ( mm )	±0.003
Miscellaneous
Pneumatic required ( kg )	7
Power required ( KVA )	40
Machine net weight ( kg )	30,000

Note : above specifications may change without notice
