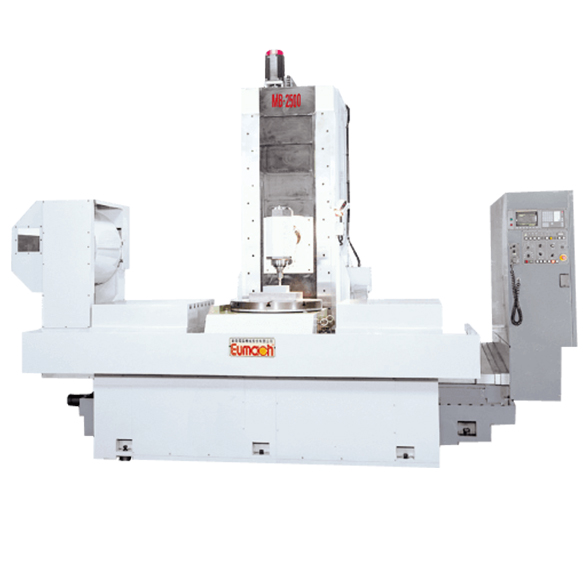

MB-2500

• Large travel choices : X axis : 1,260 mm ~ 8,000 mm, Y axis : 900 mm ~ 1,500 mm, Z axis : 800 mm ~ 1,200 mm
• Travelling column on 3 axis & fixed table standard design for an almost no weight limit work piece.
• Pendulum machining reduces much more down time than traditional twin pallet changer system.
• Extra long fixed table up to 8 meters for ease of workpiece location and setting.
• Much more expansion possibility to suit individual applications, such as additional milling heads, table group, Automatic tool changer and CNC rotary tables etc. up to 5 axis simultaneious.

MB-2500

• With 2,500 x 900 x 800 mm travel, 18.5 kW spindle motor, 800 x 800 mm integrated indexing table.

• With 2,500 x 1,200 x 800 mm travel, 7.5 kW built-in 8,000 RPM motor, #40 taper, 12 ATC, auto. vert / hori head, integrated 800 mm rotary table.

MB Strandar Feature

• Z Axis : 800 mm / 1,000 mm / 1,200 mm
• X Axis : 1,500 mm / 2,500 mm / 3,200 mm up to 8,000 mm
• Y Axis : 900 mm / 1,200 mm / 1,500 mm
• Table : 1,880 mm / 2,880 mm / 3,580 mm x 930 mm
