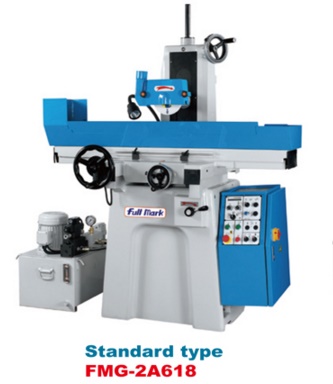

Hydraulic Surface Grinder
- FMG-1A618 FMG-2A618
- FMG-1A820 FMG-2A820
Description
| SPECIFCATIONS |
FMG-1A618 FMG-2A618 |
FMG-1A820 FMG-2A820 |
| General Capacity |
Table size |
150x457mm |
200x508mm |
| Max. grinding (W x L) |
160x475mm |
210x510mm |
| Distance from table surface to spindle center |
415mm High Column Type: 485mm(opt.) |
| Longitudinal Movement |
Manual travel |
485mm |
530mm |
| Hydraulic travel |
480mm |
508mm |
| Table speed (approx.) |
1~25m/min |
| Cross Feed Movement |
Manual travel |
180mm |
230mm |
| Hydraulic travel |
170mm |
210mm |
| Continuous feed (approx.) |
1200mm/min |
| Hand feed per rev. |
5mm per rev. |
| Hand feed per gra. |
0.02mm per gra. |
| Micro feed per gra. (opt.) |
0.001mm per gra. |
| Intermittent cross feed |
0.15~7.5mm |
| Vertical Downfeed |
Hand feed per rev. |
1mm per rev. |
| Hand feed per gra. |
0.005mm per gra. |
| Micro feed per gra. (opt.) |
0.001mm per gra. |
| Feed by MPG (opt.) per gra. |
(x1) 0.001mm (x10) 0.01mm (x100) 0.1mm |
| Grinding Wheel |
Wheel size (dia. x width x bore) |
180x13x31.75mm |
| Spindle speed (50/60Hz) |
3000 rpm (50Hz) 3600 rpm (60Hz) |
| Motors |
Spindle motor (opt.) |
1.5 HP (Opt: 2HP) |
2 HP (Opt: 3HP) |
| Cross feed motor |
25W |
40W |
| Hydraulic motor |
1HP x 3P |
| Elevated motor |
25W |
| Machine weight |
850/930 kg |
900/970 kg |
| Packing size (L x W x H) |
1750x1150x2100mm |
1750x1300x2100mm |
| End |
