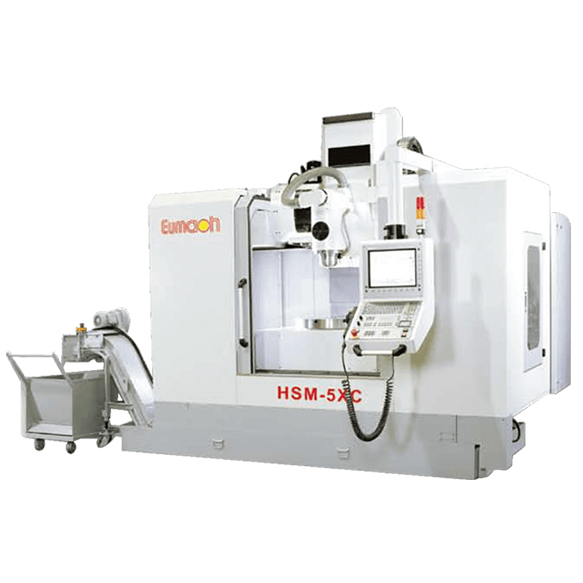

| Rotary tables |
| Type |
Integrated built in saddle |
| Diameter ( mm ) |
Ø610 |
| Diameter ( mm ) |
Ø50 H7 |
| T slots size ( mm ) |
18 H7 |
| Rotation speed ( RPM ) |
10 |
| Hydraulic pressure ( kg/cm2 ) |
50 |
| Positioning accuracy |
8″ with encoder used |
| Repeatability |
4″ with encoder used |
| Maximum load ( kg ) |
500 |
| Accessories |
None |
| Distances |
| Spindle to rotary table center ( mm ) |
0 – 715 |
| Spindle nose to rotary table top ( mm ) |
105 – 715 |
| Maximum load ( kg ) |
500 |
| Travel |
| X / Y / Z linear axis ( kg ) |
1,020 / 610 / 610 |
| B – rotary head axis ( DEG. ) |
+30° – 120° |
| A or C – rotary table axis ( DEG. ) |
0.001° x 360,000 |
| Distances |
| Spindle to column cover ( mm ) |
629 |
| Floor to table ( mm ) |
947 |
| Spindle |
| Taper ( BT# ) |
40 |
| Speed ( RPM ) |
14,000 |
| Front bearing diameter ( mm ) |
Ø70 ceramic bearings |
| Motor power & Torque ( KW & Nm ) |
29.3 / 35 & 70 / 160 |
| Axis Motors |
| X / Y / Z axis motor model & static torque ( Model & Nm ) |
1FK7100 / 1FK7100 / 1FK7101 & 18 / 18 / 27 |
| B axis motor model & max. torque ( Model & Nm ) |
1FW6130 & 1,320 |
| A or C axis motor model & static torque ( Model & Nm ) |
1FK7083 & 16 |
| Feed Rate ( X / Y / Z Linear axis ) |
| Rapid feed rate ( m / min ) |
36 / 36 / 24 |
| Cutting feed rate ( mm / min ) |
1 – 20,000 |
| Automatic Tool Changer |
| Type of ATC |
Swing arm with 430 mm travel |
| Number of ATC ( Tools ) |
32 |
| Maximum tool ( diameter / length / kg ) ( mm ) |
150 / 300 / 7 |
| Ballscrews on 3 Axis |
| Diameter x pitch ( XY / Z ) ( mm x mm ) |
40 x 16 / 50 x 12 |
| Precision class ( mm / 300 mm ) |
C3, 0.008 |
| Coolant & Lubrication & Hydraulic |
| Coolant motor power ( KW ) |
0.86 |
| Coolant tank volume ( L ) |
250 |
| Coolant motor capacity ( L / min ) |
20 |
| Lubrication motor / tank volume ( WATT / L ) |
25 / 2 |
| Hydraulic tank capacity & volume ( kg/cm2 ) |
50 |
| Accuracy |
| Positioning ( XYZ linear axis ) ( mm ) |
JIS 6338 : ± 0.005 mm / 300 mm, VDI 3441 : P0.012 mm |
| Positioning ( B & A or C rotary ) ( SEC. ) |
With Heidenhain RCN226 8″ |
| Repeatability ( XYZ linear ) ( MM ) |
JIS 6338 : ± 0.003 mm, VDI 3441 : PS0.008 mm |
| Positioning ( B & A or C rotary ) ( SEC. ) |
With Heidenhain RCN226 4″ |
| Roundness ( XYZ linear axis ) |
JIS 6338 : ± 0.01 mm / 300 mm, diameter |
| Miscellaneous |
| Machine net weight ( kg ) |
9,000 |
| Total power requires ( KVA ) |
75 |
