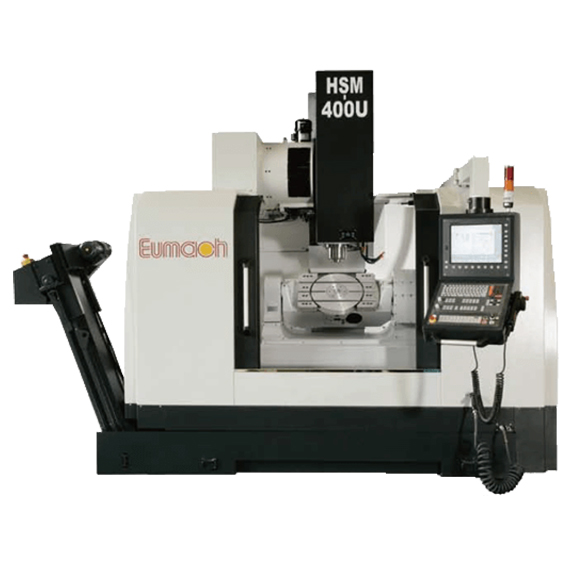

HSM-400U

5 Axis Machining

Description

The most efficient & intelligent machining concept for multi-sided high performance machining, increase productivity, flexibility and repeatability.

Outstanding precision, productivity and reliability make Eumachn 5 axis machining centers ideal solution for high speed 5 axis machining applications, such as aluminum, titanium and special alloys has been increasing rapidly in demand for aerospace, medical optical and automotive industries, etc. For more than last 12 year, Eumach has been developing groundbreaking solutions to the challenges of this growing market, from the smallest 255 mm diameter or by using 2 axis milling heads on large size double column machines.

Specification

Model HSM-400
Tilting Rotary Table
Overall size 600 x 365 ( Ø500 )
Top plate diameter Ø400 mm + 2 extensions ( Ø500 )
Dia. Ofcentral bore Ø50H7
T slots 12H7
Max. load (0°/tilting) Kg 200 / 100
Travel
X / Y / Z axis 800 / 610 / 510
B (tilt) / C (rotary) axis -42° ~ 120° / 360°
Distances
Spindle to column ways 645
Spindle to table top 130 ~ 640
Floor to table top no pad 1,168
Spindle
Taper BT#40 ( CAT / SK40 / HSK-A63 / E50 )
Transmission Belt ( DD / motor spindle )
Speed RPM 8,000 ( 12,000 / 15,000 / 18,000 / 24,000 / 30,000 )
Front bearing dia. 70
Motor kW 7.5 / 11 ( ~22 / 26 )
Axis motors X / Y / Z / B / C:( based on Fanuc motors )
Motor torque Nm 22 / 22 / 30 / 22 / 8
Motor power kW 4 / 4 / 7 / 4 / 1.6
Rapid feed M 8
Front bearing dia. 30 / 30 / 24
ATC arm type
No. of tools Pcs 24 ( 32, 40 )
Max. tool dia./ length 125 / 250
Max. tool weight Kg 7
Tool to tool sec. 3
Ballscrews
Ø x pitch ( XY / Z axis ) 40 x 12 / 50 x 12
Precision class ( C3 ) 0.008 mm / 300 mm
Coolant & Lube
Coolant motor kW 1.27
Coolant tank volume L 250
Coolant motor capacity 20L / min
Lube motor Watt 25
Lube tank volume L 2
Accuracy
XYZ positioning JIS 6338 : ± 0.005 / 300, VDI 3441 : P0.01
XYZ repeatability JIS 6338 : ± 0.003 mm, VDI 3441 : PS0.008
B/C positioning arc.sec 15 / 45
B/C repeatability arc.sec ±4 / ±3
Miscellaneous
Net weight kg 7,800
Power required KVA 40
Pneumatic required 7kgs / cm2
Machine frame used HSM-1000L
CNC Control Fanuc 0i-MD / 31i-MB5, Heidenhain iTNC-530 / 640, Siemens 828D / 840D-SL
