Home Eumach Vertical Machining Center HSM-1350

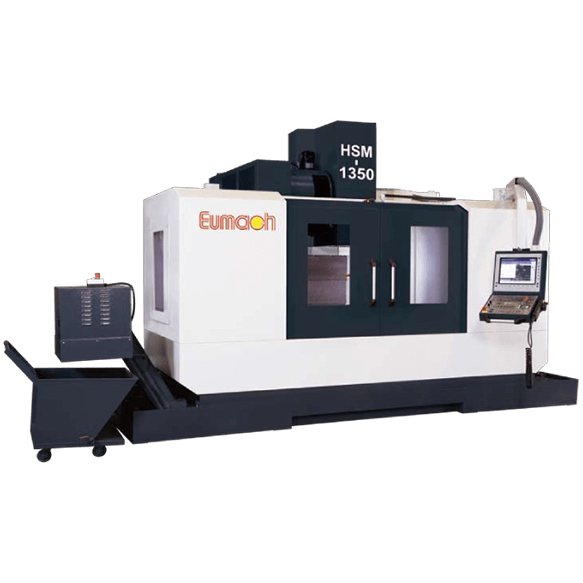

HSM-1350

C Frame/Linear way

Categories: ,

Description

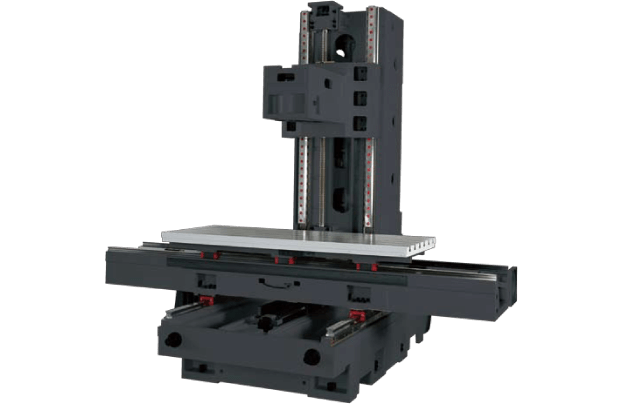

Superior Designed Features

HSM-1350 : 1,350 x 620 x 810 (mm)

Specification

( ) Option
Model HSM-1350
Table
Overall size ( mm ) 1,560 x 620
T slots ( size x No. x pitch ) ( mm ) 18 x 6 x 100
Max. loading ( kg ) 1,200
Travel
X axis ( mm ) 1,350
Y axis ( mm ) 620
Z axis ( mm ) 810
3 Axis Linear way
Linear way width ( mm ) 45 / 45 / 45
Distances
Spindle to column ways ( mm ) 710
Spindle to z axis cover ( mm ) 650
Spindle to table top ( mm ) 80 ~ 890
Floor to table top ( mm ) 868
Spindle
Taper #40 (HSK-A63)
Speed ( RPM ) 8,000 (~30,000)
Front bearing dia. ( mm ) 70
Motor ( kW ) 7.5 / 11 (~ 22 / 26)
Transmission 1:1 HTD belt ( direct coupling, motor spindle )
Axis motors
Axis motor torque ( Nm ) 22 / 22 / 22
Motor power ( kW ) 4 / 4 / 4
Rapid feed rate ( m ) 30 / 30 / 24
ATC swing arm
No. of tools 24 (32, 40, 60)
Max. tool diameter ( mm ) 125
Max. tool length ( mm ) 250
Ballscrews
Dia. x pitch ( X / Y / Z ) 45 / 40 / 50 x 12
Precision class ( C3 ) ( mm / 300 mm ) 0.008
Net weight
Net weight ( kg ) 9,800

Standard Accessories

  • Arm type tool changer system
  • Screw type chip quger & bucket
  • Full splash guard
  • Programmable coolant system
  • Automatic lubrication system
  • Spindle air blast system
  • Working lamp
  • Alarm lamp for abnormal situation
  • Indication lamp for dwell & end of job
  • Levelling bolts & pads
  • RS-232 terminal interface port
  • Machine & control manuals
  • Soznners & wernches
  • Spindle oil cooler device
