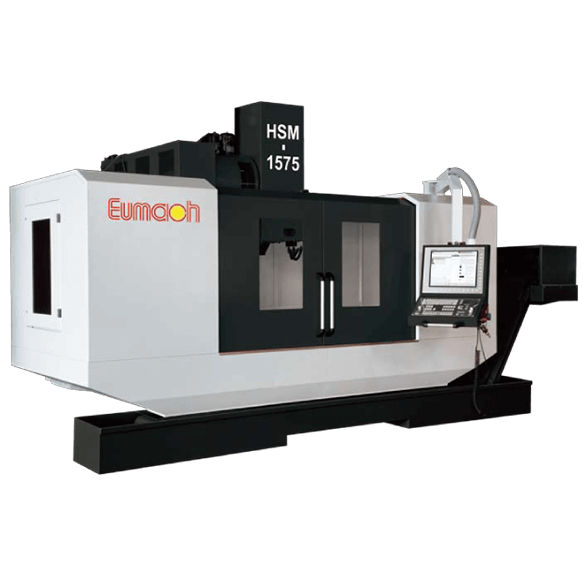

HSM-1175-1575

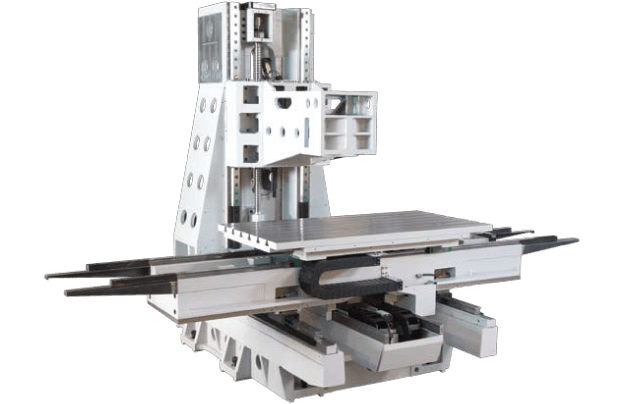

C Frame/Linear way

All roller guide ways are allowing a low friction and steady axis movement.

( ) Option

Model	HSM-1175	HSM-1575
Table
Overall size ( MM )	1,350 x 700	1,600 x 700
T slots ( size x No. x pitch ) ( MM )	18 x 6 x 100	18 x 6 x 100
Max. loading ( kg )	1,000	1,500
Travel
X axis ( mm )	1,100	1,500
Y axis ( mm )	750	750
Z axis ( mm )	650 (900)	650 (900)
3 Axis Linear way
Linear way width ( mm )	35 / 45 / 45	35 / 45 / 45
Distances
Spindle to column ways ( mm )	831	831
Spindle to z axis cover ( mm )	764	764
Spindle to table top ( mm )	50 ~ 700 (950)	50 ~ 700 (950)
Floor to table top ( mm )	999	999
Spindle
Taper	#40 (HSK-A63)	#40 (HSK-A63)
Speed ( RPM )	8,000 (~30,000)	8,000 (~30,000)
Front bearing dia. ( mm )	70	70
Motor ( kW )	7.5 / 11 (~ 22 / 26)
Transmission	1:1 HTD belt ( direct coupling, motor spindle )
Axis motors
Axis motor torque ( Nm )	12 / 12 / 22	22 / 22 / 22
Motor power ( kW )	3 / 3 / 4	4 / 4 / 4
Rapid feed rate ( m )	48 / 48 / 48	48 / 48 / 48
ATC swing arm
No. of tools	24 (32, 40, 60)	24 (32, 40, 60)
Max. tool diameter ( mm )	125	125
Max. tool length ( mm )	250	250
Ballscrews
Dia. x pitch ( X / Y / Z )	45 / 40 / 40 x 16	45 / 40 / 40 x 16
Precision class ( C3 ) ( mm / 300 mm )	0.008
Net weight
Net weight ( kg )	8,500	11,000
