Description

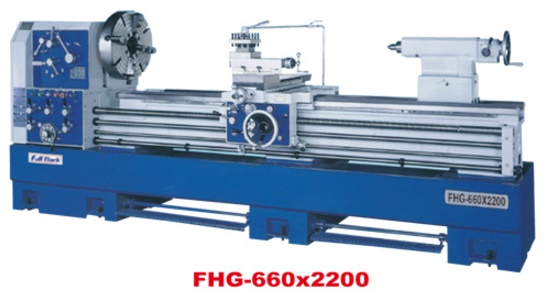

| SPECIFCATIONS | FHG-660 | FHG-760 |
|---|---|---|
| x 1200 | x 1700 |x 2200 | x 2200 | x 3200 | x 4200 | |
| Swing over Bed | 660mm | 760mm |
| Swing over Cross Slide | 410mm | 510mm |
| Distance between Centers | 1200mm | 1700mm | 2200mm | 2200mm | 3200mm | 4200mm |
| Swing over Gap | 930mm | 1030mm |
| Width of Bed | 420mm | |
| Length of Bed | 2400mm | 2900mm | 3400mm | 3400mm | 4400mm | 5400mm |
| Spindle Bore Diameter | Ø80mm or [ Ø105mm (4.13”) Option ] | |
| Spindle Speeds & Steps | 23 – 1300 rpm (12 steps) | |
| Spindle Nose | ASA D1-8 (or A1-11 for spindle bore Ø105mm Option) | |
| Range of Metric Pitches | 0.8~14mm (65 Nos) | |
| Range of Inch Pitches | 2~28 T.P.I. (36 Nos) | |
| Main Spindle Motor | 10HP (7.5kw) | |
| N.W./G.W. (Kgs) FHG-660 | 2500 / 2700 | 2700 /3000 | 2900 / 3200 | 2900 / 3200 | 3200 /3600 | 3700 /4000 |
| N.W./G.W. (Kgs) FHG-760 | 2680 /2880 | 2880/ 3180 | 3080 /3380 | 3080 /3380 | 3480 /3780 | 3880/ 4180 |
