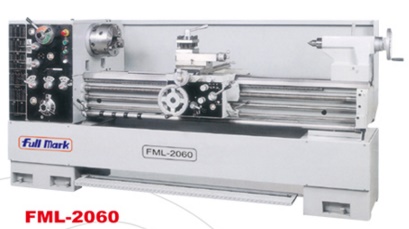

| NOMINAL SIZE |
Swing over Bed |
440mm (17-5/16″) |
510mm (20″) |
| Swing over Cross Slide |
272mm (10-3/4″) |
342mm (13-1/2″) |
| Height of Center |
220mm (8-5/8″) |
255mm (10″) |
| Distance Between Centers |
1000mm |
1500mm |
2000mm |
1000mm |
1500mm |
2000mm |
| BED |
Width of Bedways |
330mm |
| Total Length of Bed |
2000mm |
2510mm |
3020mm |
2000mm |
2510mm |
3020mm |
| Swing over Gap |
660mm |
730mm |
| Length of Gap |
300mm |
| Width in front of face plate |
190mm |
175mm |
| SPINDLE |
Spindle nose mounting |
D1-8 Camlock |
| Spindle bore |
86mm |
| Taper of spindle bore |
MT#5 |
| Number of spindle speeds |
12 steps |
| Range of spindle speeds |
20-1800 rpm |
| TOOL SLIDE |
Total travel of cross slide |
260mm |
| Total travel of top slide |
130mm |
| Max. size cutting tool |
25mm |
| TAILSTOCK |
Total travel of tailstock barrel |
150mm |
| Taper in tailstock barrel |
MT#5 |
| Diameter of barrel |
65mm |
| THREADS |
Lead screw diameter & pitch |
Dia.35mm Pitch 6mm 4 T.P.I |
| Inch threads |
2-72 TPI (48) |
| Metric threads |
0.2-14mm (48) |
| Diametral pitches |
8-60 D.P. (24) |
| Module pitches |
0.2-3.5 M.P. (24) |
| FEEDS |
Feed rod diameter |
25mm |
| Range of longitudinal feeds |
0.06~2 mm/rev. |
| Range of cross feeds |
0.03~0.8 mm/rev. |
| MOTOR |
Main spindle motor |
10HP |
| Coolant pump motor |
1/8HP |
| WEIGHT |
Machine net weight |
1900 kgs |
2000 kgs |
2200 kgs |
2000 kgs |
2100 kgs |
2300 kgs |
