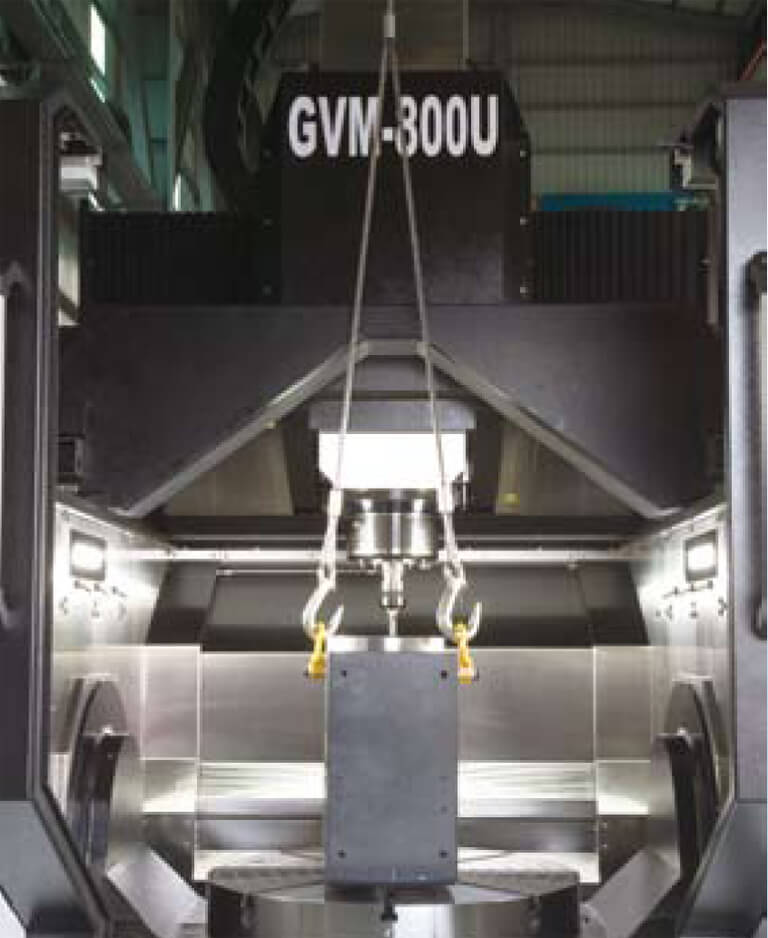

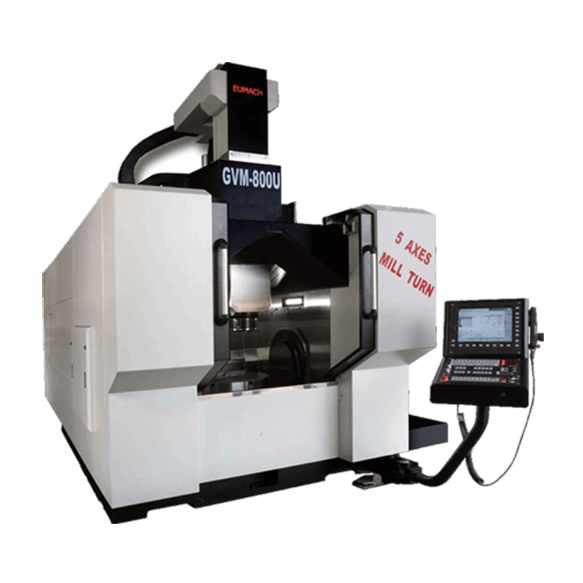

| Travel |
| X Y Z axis ( mm ) |
800 / 900+330 / 62 |
| Distances |
| Spindle nose to table top ( mm ) |
112.5 ~ 732.5 |
100 ~ 720 |
| Spindle nose to table center ( mm ) |
0 ~ 732.5 |
0 ~ 720 |
| Rotary table tilt A axis |
| Maximum rotation ( RPM ) |
50 |
25 |
| Transmission via torque motor ( set(s) ) |
1 |
2 |
| Tilt angle |
± 125ﾟ |
± 135ﾟ |
| Continuous / peak torque ( Nm ) |
2,680 -peak |
4,980 / 9,500 |
| Brake torque ( Nm ) |
6,000 |
10,000 |
| Rotary table rotary C axis |
| Table dimension ( mm ) |
Ø800 |
| Maximum loading ( kg ) |
1200 |
| Maximum rotation ( RPM ) |
100 |
800 |
| Transmission |
Torque motor |
| T slots ( mm ) |
14 x 7 |
Radial 18 x 8 |
| Continuous / peak torque ( Nm ) |
1,230 -peak |
1,127 / 2,065 |
| Brake torque ( Nm ) |
3,000 |
4,000 |
| Table top to floor ( mm ) |
876 |
891 |
| Motor spindle |
| Maximum spindle speed ( RPM ) |
18,000 |
10,000 |
| Spindle power S1/S6 ( kW ) |
26 / 32 |
27 / 31 |
| Spindle torque S1/S6 ( Nm ) |
124 / 154 |
130 / 170 |
| Spindle taper |
HSK-A63 |
HSK-T63 |
| Ball screws |
| X / Y / Z Diameter x pitch ( mm ) |
Ø50 / 50 x 2 / 50mm x 16mm FDC, oil thru cooled |
| X / Y / Z axis Roller guide |
| Width ( mm ) |
55 / 55 / 45 |
| Runner blocks number |
4 / 4 / 4 |
| Feed rate |
| Rapid feed X / Y / Z ( M / min. ) |
48 / 48 / 48 |
| Cutting feed ( M / min. ) |
20 |
| ATC |
| Tool holder type |
HSK-A63 |
HSK-T63 |
| Tools number |
32 (40, 64, 80, 120) |
| Maximum tool D / L / W ( mm ) |
Ø75 & Ø125 / 300 / 8kgs |
| Tools exchanging type |
Armless carousel pick up, servo motor driven |
| Weight |
| Before packing ( tons ) |
24 |
25 |
| Measuring |
| Direct |
4 linear scales (Yx2) & 2 rotary encoders |
| CNC |
| Brands |
Heidenhain & Siemens |
