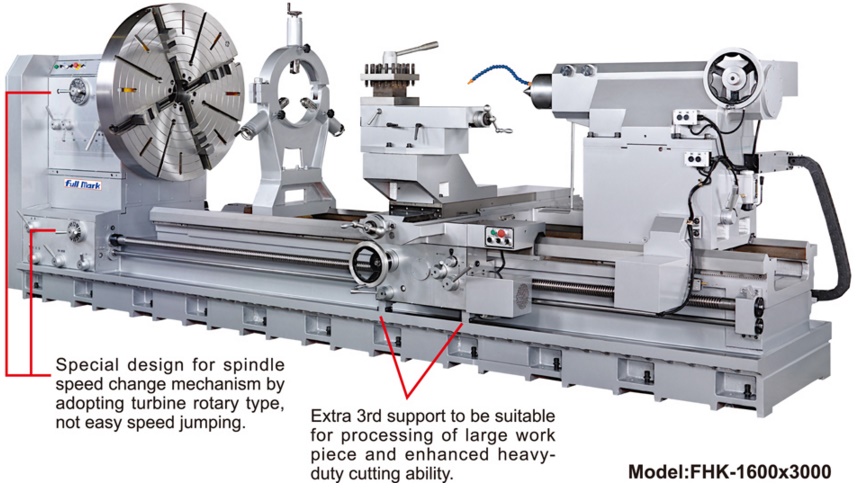

Description
Standard Accessories:
1.Lubricating device for headstock 9.Steady rest Ø16”
2.Spindle motor 20HP 10.Face plate with 4-jaw 40”
3.Electro-magnetic brake 11.Dead center
4.Metric/Inch gear box 12.Center Sleeve MT#6
5.Longitudinal & Cross rapid feeding 13.Toolpost screw wrench
6.Strong electric tailstock (Quill 200mm) 14.Level pads
7.X,Z-axes auto lubrication system 15.Tool & Tool Box 8.X,Z-axes with Turcite-B
| SPECIFCATIONS | FHK-960 | FHK-1120 | FHK-1220 (to 2000) |
|---|---|---|---|
| Swing over bed | 960mm | 1120mm | 1220mm (to 2000mm) |
| Swing over cross slide | 550mm | 710mm | 810mm (to 1590mm) |
| Swing over gap | 1240mm | 1400mm | 1500mm (to 2280mm) |
| Distance between centers | 2000mm | 3000mm | 4000mm | 4000mm | 5000mm | 6000mm | 7000mm | 8000mm |
| Spindle center to floor height | 1165mm | 1245mm | – |
| Width of bed | 810mm | ||
| Width of gap | 595mm (actual turning diameter changed by different chuck size) | ||
| Length of bed | 4390mm | 5390mm | 6390mm | 6390mm | 7390mm | 8390mm | 9390mm | 10390mm |
| Spindle bore diameter | Ø 152mm [ Ø230mm,Ø305mm,Ø380mm OPTION ] | ||
| Spindle nose | ASA A2-11 [ A2-15 & A2-20 OPTION ] | ||
| Spindle speeds & steps | 4 ~ 420 RPM(16 steps) | 7 ~ 266 RPM (12 steps) | |
| Width of carriage | 880mm | ||
| Cross slide travel | 700mm | ||
| Compound rest travel | 400mm | ||
| Max. size cutting size | 32 x 32mm | ||
| Diameter of barrel | Ø 200mm | ||
| Travel of barrel | 300mm | ||
| Taper of barrel | MT#6 [ MT#7 opt. ] | ||
| Movement | Body movement: electric type(motor:1/2HP)/ Quill movement: manual [ Electric type(motor:1/4HP) opt. ] | ||
| Lead screw diameter & pitch | Dia. 60mm Pitch 12mm | ||
| Range of metric pitches | 1~120mm (62 Nos) | ||
| Range of inch pitches | 0.25~30 T.P.I. (70 Nos) | ||
| Range of diametral pitches | 1-120 D.P. (70 Nos) | ||
| Range of module pitches | 0.25~30 M.P. (53 Nos) | ||
| Feed rod diameter | 32mm | ||
| Range of longitudinal feeds | 0.06~7.04 mm/rev | ||
| Range of cross feeds | 0.03~3.52 mm/rev | ||
| Main spindle motor | 20HP (15kw) (25HP or 30HP option) | ||
| Coolant pump motor | 1/8 HP | ||
| Rapid motor | 1 HP | ||
| N.W./G.W. (Kgs) FHK-960 | 12700/13600 | 13800/14800 | 14900/16000 | 14900/16000 | 16000/17200 | 17100/18400 | 18200/19600 | 19300/20800 |
| N.W./G.W. (Kgs) FHK-1120 | 13000/13900 | 14100/15100 | 15200/16300 | 15200/16300 | 16300/17500 | 17400/18700 | 18500/19900 | 19600/21100 |
| Machine size (LxWxH) | 4740/ 5740/ 6740/ 7740/ 8740/ 9740/ 10740 x 2170 x 1510 mm (FHK-960) 4740/ 5740/ 6740/ 7740/ 8740/ 9740/ 10740 x 2170 x 1540 mm (FHK-1120) | ||
| Shipping dimensions (LxWxH) | 5100/ 6100/ 7100/ 8100/ 9100/ 10100/ 11100 x 2270 x 2300 mm | ||
