Description
Superior Designed Features

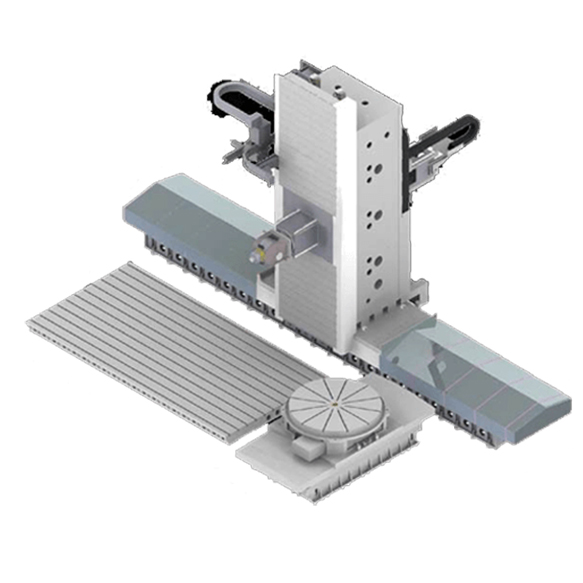

Machine shown in picture is 10 m(X) x 4 m(Y) x 1.3 m(Z) x ±180°(A) x ±360°(B) x ±360°(C) x 3 m (V) HSK-A100 / 12,000 RPM spindle, 60 ATC, 7 m x 2.5 m floor plate, Ø 2.5 m rotary table with 30 tons load, lifting operator cabinet.
High versatile due to wide range of machine configuration, besides standard Ø160 mm boring spindle such as various milling heads, floor plates, angle plates, rotary / rotary traveling / rotary traveling with tilting function tables, this is the most flexible machining center in the market, which is able to satisfy for the next decade various industries such as aerospace, energy ( wind power, gas, nuclear ), ship building, oil, rail way, mining and subcontractor machining sector etc. !
Range
- X4 m ~ 20 m, every 2 m modular
- Y2 m ~ 4 m, every 0.5 m modular
- Z1.2 m
- A± 180°
- Bup to 3 m rotary table
- C± 360°
- V1.5 m ~ 3 m, every 0.5 m modular
- W0.7 m or 1 m
Specification
( ) Option
