FBE-1500

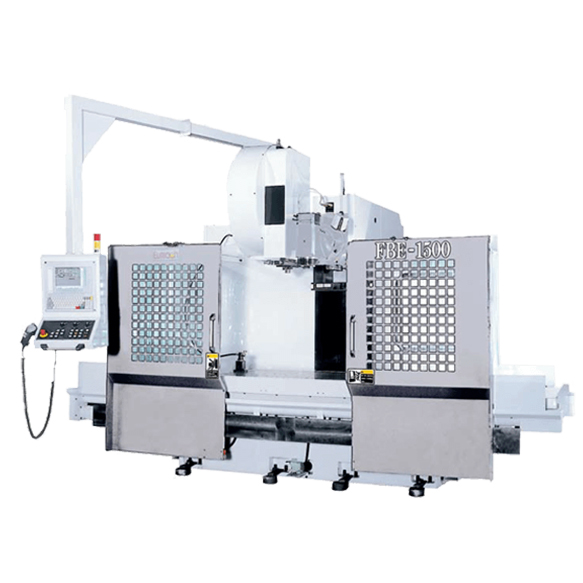

FBE-1500 with 1,500 x 1,000 x 950 (1,500) (mm) travel, 1,600 x 1,050 (mm) table.

Ideal for large molds, forging dies, and heavy work pieces up to 8000 kg weight.
Machine multi-sides of workpiece with a single set-up. ( With optional milling head & rotary table )
Universal multi angle universal milling head with hydraulic tool clamping.
Hydraulic counterbalance on vertical movement.
Hardened & ground guideways with sliding surfaces coated with turcite anti-friction material.
Precision large diameter ball scerws on X-Y-Z, rigid mounted.

( ) Option

Model	FBE-1500
Table
Working area ( mm )	1,600 × 1,050
T slots ( size x no ) ( mm )	22H8 × 7 slots
Top to floor distance ( mm )	870
Load ( evenly distributed ) ( kg )	3,000
Travel
X axes ( mm )	1,500
Y axes ( mm )	1,000
Z axes ( mm )	950 ( 1,500 )
Horizontal spindle ( no more if with VH-2.5, VH-1 head )
Taper	DIN 67871 #50
Speed ( RPM )	3,500 ( 5,000 )
Output 40% duty cycle ( kW )	25
Constant Output ( kW )	17
Maximum torque S1 ( Nm )	650
Universal milling head
Taper	DIN 67871 #50
Speed ( RPM )	3,500
Output 40% duty cycle ( kW )	25
Constant Output ( kW )	17
Maximum torque S1 ( Nm )	650
Feed Rates
Cutting ( mm / min )	1 – 5,000
Rapid ( mm / min )	10,000
Ballscrews
X axis dia. x pitch ( mm x mm )	Ø50 x 10
Y axis dia. x pitch ( mm x mm )	Ø50 x 10
Z axis dia. x pitch ( mm x mm )	Ø50 x 10
Precision class ( mm / 300 mm )	0.008 / 300
Accuracy
Positioning ( mm / 300 mm )	JIS 6338 : ± 0.005 mm / 300 mm VDI 3441: P0.014 mm
Repeatability ( mm )	JIS 6338 : ± 0.003 mm VDI 3441: PS0.01 mm
Roundness ( mm / dia. )	JIS 6338 : ± 0.01 mm / 300 mm dia.
General
Net weight ( kg )	11,000
Pneumatic required ( kg / cm² )	6
Hydraulic required ( kW )	3.5
Power required ( KVA )	30
