Superior Designed Features
6 boxway base table is fully supported on the 4,900 mm(EBM-2600), 6,100 mm (EBM-3200) length saddle.

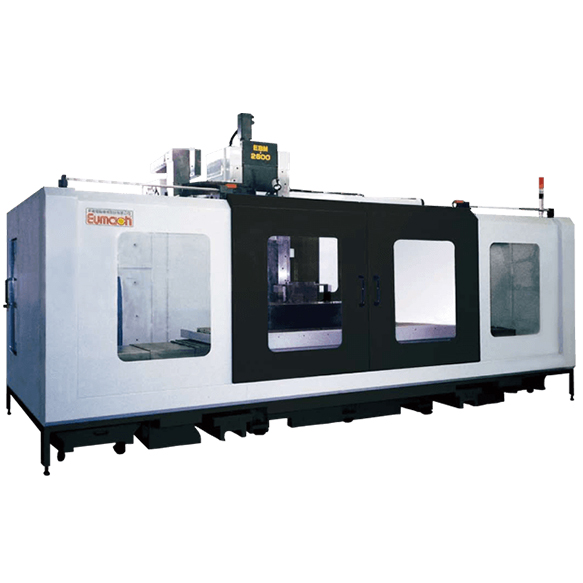

EBM-2600
- Table Dimension : 2,650 mm x 1,220 mm
- X Axis Travel : 2,600 mm
- Y Axis Travel : 1,400 mm
- Z Axis Travel : 1,100 mm
- Table Load : 4,500 kgs
EBM-3200
- Table Dimension : 3,250 mm x 1,220 mm X Axis Travel : 3,200 mm
- Y Axis Travel : 1,400 mm
- Z Axis Travel : 1,100 mm
- Table Load : 5,000 kgs
Specification
( ) Option
Standard Accessories
- Programmable coolant system
- Levelling bolts & pads
- Automatic lubrication system
- BT#50 spindle
- Spindle air blast system
- Pre-extensioned ballscrews
- Working lamp
- RS-232 terminal interface port
- Alarm lamp for abnormal situation
- Machine & control manuals
- Indication lamp for dwell & end of job
- Toolbox with spanners & wrenches
