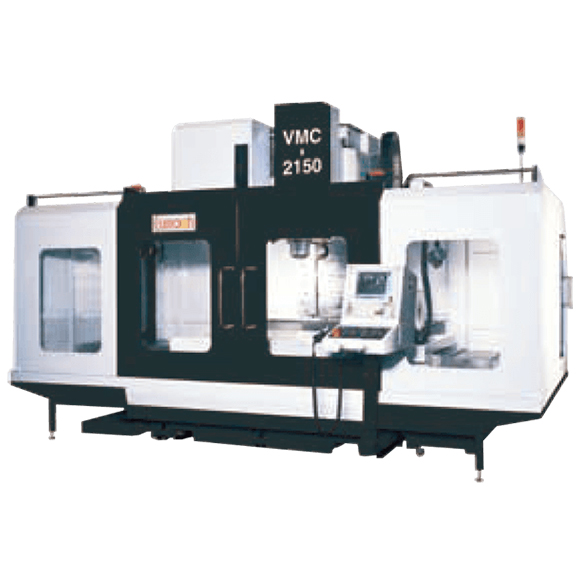

EBM-2150

C Frame/Box way

4 boxways base,table is fully supported on the 4,000 mm length saddle.

( ) Option

Model	EBM-2150
Table
Overall size ( mm )	2,200 x 1,220
Working area ( mm )	2,200 x 1,100
T slots ( size x No. x pitch ) ( mm )	22 x 7 x 125
Maximum loading ( kg )	4,000
Travel
X / Y / Z axis ( mm )	2,150 / 1,400 / 1,100
Distances
Spindle nose to table edge ( mm )	-249 ~ 930
Spindle center to table top ( mm )	190 ~ 1,590
Spindle nose to column surface ( mm )	249
Floor to table ( mm )	995
Spindle
Taper ( ISO )	BT#50
Speed ( RPM )	4,000 ( 6,000 )
Motor ( kW )	15
Axis motors
X & Z axis ( Nm )	27 / 27
Y axis ( Nm )	27 with brake
Cutting feed rate ( mm / min )	1 ~ 5,000
Rapid feed rate ( m )	10 ( 15 )
Minmum setting ( mm )	0.001
Automatic tool changer
Type of ATC	Swing ARM
No. of ATC ( Tools )	32 ( 40, 60 )
Max. tool ( dia. / length ) ( mm )	250 / 300
Max. tool weight ( kg )	15
Tool to tool ( sec )	3.5
Ballscrews on X / Y / Z
Diameter ( mm )	63 / 50 / 63
Precision class ( C3 ) ( mm / 300 mm )	0.008
Coolant & lubrication
Coolant motor power ( kW )	0.86
Coolant tank volume ( L )	350
Coolant motor capacity ( L / min )	20
Lubrication motor power ( WATT )	25
Lubrication tank volume ( L )	4
Accuracy
Positioning ( mm )	JIS 6388 : ±0.005 / 300, VDI 3441 : P0.014
Repeatability ( mm )	JIS 6388 : ±0.003 , VDI 3441 : PS0.01
Roundness ( mm )	JIS 6388 : ±0.01 / 300 , Diameter
Miscellaneous
Machine net weight ( kg )	21,000
Power required ( KVA )	35
Pneumatic required ( kg / cm²)	7
