Home Eumach Double Column Machining Center DVM-3025 ~ 5025

DVM-3025 ~ 5025

Double Column Machining

Categories: ,

Description

Double Column Machining

The latest innovative design not only for mould & die applications but also for aerospace, construction, textile machinery industriesand general machining; with high efficiency, high accuracy and high power characteristics combined with a large work envelope.

Features

  • Large capability
    Table size from 2 m x 1.7 m up to 6 m x 3.1 m, table load from 8 tons up to 30 tons.
  • High rigidity spindle head
    Standard 380 mm x 380 mm or optional section powerful square ram spindle head provides superior cutting power.
  • Optional atc & milling heads
    Automatic tool changer 24 up to 180 tools; milling head can be changed with various milling heads.

Specification

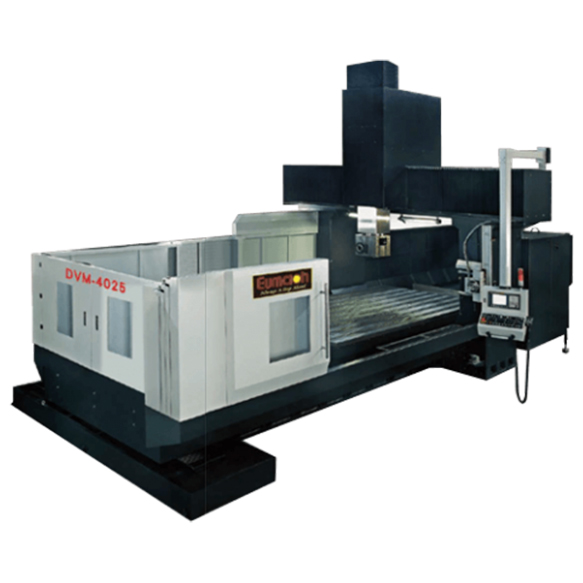

Model illustration: ex.

( ) Option
Model DVM-3025 DVM-4025 DVM-5025
Travel
X Axis ( mm ) 3,200 4,200 5,200
Y Axis ( mm ) 2,600
Z Axis ( mm ) 700 ( 900 / 1,100 / 1,300 )
Distances
Between two columns ( mm ) 2,530
Spindle to table top ( mm ) 1.Standard long nose 130 – 830 ( 130-1030 / 130 – 1,230 / 130 – 1,430 )
2.Optional short nose 240 – 940 ( 240 – 1,140 / 240 – 1,340 / 240 – 1,540 )
Table top to floor ( mm ) 915
Table
Overall size ( mm ) 3,000 x 2,100 4,000 x 2,100 5,000 x 2,100
T slots ( mm ) 22
Maximum loading ( kgs ) 14,000 16,000 18,000
X Axis slideway 2 coller bearing
Spindle & RAM
Transmission ( TYPE ) Direct coupling
Taper BT-50 ( DIN, 69817 ) ( CAT-50 )
Speed ( RPM ) 40 ~ 6,000
RAM section ( mm ) 380 x 380 ( 420 x 420 )
RAM section ( TYPE ) Box way 8 surface fontacted
Motor Fanuc / Mitsubishi ( kW ) 22 / 26
Heidenhain / siemens ( kW ) 25 ( S6 – 40% )
Feedrate: X & Y & Z
Cutting feedrate ( mm / min ) 1 – 8,000
Rapid feedrate ( mm / min ) 15 / 15 / 10 ( 15 ) 10 / 15 / 10 ( 15 )
Minimum setting ( mm ) 0.001
Automatic tool changer (option)
No. of ATC ( PCS ) ( 24, 40, 60, 120, 180 )
Max. tool ( Dia / length ) ( mm ) Ø110 or Ø200 350L
Max. tool weight ( kgs ) 15
Tool to tool ( sec ) 8
Coolant & Lubrication
Coolant tank volumn ( liter ) 26
Hydraulic tank volume ( liter ) 120
Lubrication tank volume ( liter ) 6
Lubrication tank volume ( liter ) 880
Accuracy
Positioning ( mm ) 0.02 0.025
Repeatability ( mm ) 0.015 0.02
Roundness ( mm ) 0.02 / Ø300
Miscellaneous
Power required ( KVA ) 60
Pneumatic required ( Kg / cm 2 ) 5
Machine net weight ( kgs ) 30,000 38,000 49,000
