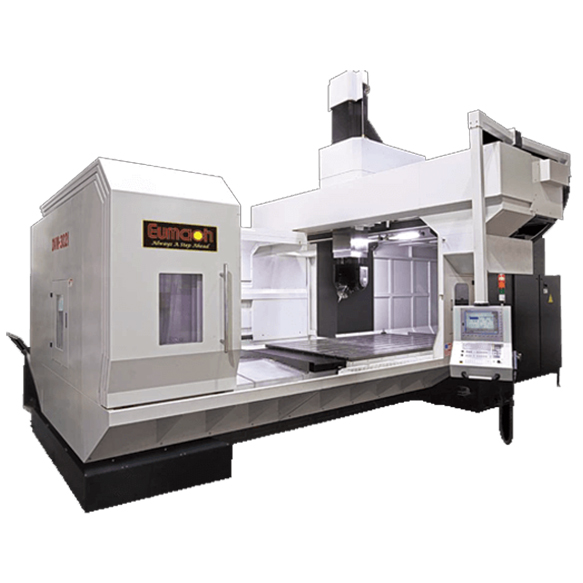

| Travel |
| X Axis ( mm ) |
2,150 |
3,200 |
4,200 |
5,200 |
| Y Axis ( mm ) |
2,200 |
| Z Axis ( mm ) |
700 ( 900 / 1,100 / 1,300 ) |
| Distances |
| Between two columns ( mm ) |
2,130 |
| Spindle to table top ( mm ) |
1.Standard long nose 130 – 830 ( 130 – 1,030 / 130 – 1,230 / 130 – 1,430 )
2.Optional short nose 240 – 940 ( 240 – 1,140 / 240 – 1,340 / 240 – 1,540 ) |
| Table top to floor ( mm ) |
915 |
| Table |
| Overall size ( mm ) |
2,000 x 1,700 |
3,000 x 1,700 |
4,000 x 1,700 |
5,000 x 1,700 |
| T slots ( mm ) |
22 |
| Maximum loading ( kgs ) |
8,000 |
11,000 |
13,000 |
15,000 |
| X Axis slideway |
2 coller bearing |
| Spindle & RAM |
| Transmission ( TYPE ) |
Direct coupling |
| Taper |
BT-50 ( DIN, 69817 ) ( CAT-50 ) |
| Speed ( RPM ) |
40 ~ 6,000 |
| RAM section ( mm ) |
380 x 380 ( 420 x 420 ) |
| RAM section ( TYPE ) |
Box way 8 surface fontacted |
| Motor Fanuc / Mitsubishi ( kW ) |
22 / 26 |
| Heidenhain / siemens ( KW ) |
25 ( S6 – 40% ) |
| Feedrate: X & Y & Z |
| Cutting feedrate ( mm / min ) |
1 – 8,000 |
| Rapid feedrate ( mm / min ) |
15 / 15 / 10 ( 15 ) |
10 / 15 / 10 ( 15 ) |
10 ( 12 ) / 10 ( 12 ) / 10 ( 12 ) |
| Minimum setting ( mm ) |
0.001 |
| Automatic tool changer (option) |
| No. of ATC ( PCS ) |
( 24, 40, 60, 120, 180 ) |
| Max. tool ( Dia / length ) ( mm ) |
Ø110 or Ø200 350L |
| Max. tool weight ( kgs ) |
15 |
| Tool to tool ( sec ) |
8 |
| Coolant & Lubrication |
| Coolant tank volumn ( liter ) |
26 |
| Hydraulic tank volume ( liter ) |
120 |
| Lubrication tank volume ( liter ) |
6 |
| Lubrication tank volume ( liter ) |
800 |
| Accuracy |
| Positioning ( mm ) |
0.02 |
0.025 |
| Repeatability ( mm ) |
0.015 |
0.02 |
| Roundness ( mm ) |
0.02 / Ø300 |
| Miscellaneous |
| Power required ( KVA ) |
60 |
| Pneumatic required ( Kg / cm 2 ) |
5 |
| Machine net weight ( kgs ) |
24,000 |
28,000 |
35,000 |
44,000 |
