Description

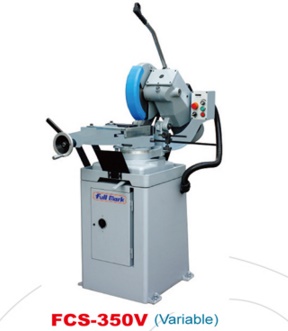

| SPECIFCATIONS | FCS-350V | FCS-315 | FCS-250 | FCS-275 | |
|---|---|---|---|---|---|
| Cutting Capacity 90° | ● | 85mm | 50mm | 30mm | |
| ○ | 120mm | 100mm | 75mm | ||
| □ | 105x105mm | 82x82mm | 65x65mm | ||
| □ | 160x90mm | 110x70mm | 90x50mm | ||
| Cutting Capacity 45° | ● | 75mm | 50mm | 30mm | |
| ○ | 100mm | 65mm | |||
| □ | 85x85mm | 82x82mm | 55x55mm | ||
| □ | 85x70mm | 60x50mm | |||
| Main Motor | 3HP/3ph 4P | 2HP/3ph 2P/4P | 1HP/3ph 2P/4P | 1-1/2HP/3ph 2P/4P | |
| Spindle Speed | VARIABLE SPEED 24~120 RPM | 50HZ 44/ 88 RPM 60HZ 52/104 RPM | 50HZ 45/ 90 RPM 60HZ 54/108 RPM | ||
| Saw Blade | HSS 2.5mmx32 x Ø350mm | HSS 2mmx32 x Ø315mm | HSS 2mmx32xØ250mm | HSS 2mmx32xØ275mm | |
| Maximum Vise Opening | Ø 170mm | Ø 120mm | Ø 100mm | ||
| Machine Weight | 250 kgs (with stand) | 175 kgs (with stand) | 110 kgs (without stand) 21 kgs (stand) | ||
| End | |||||
