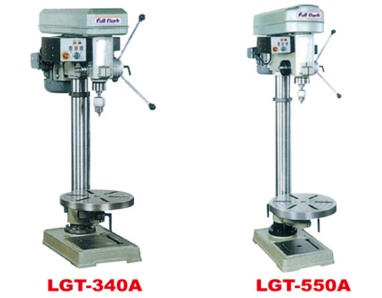

Automatic Feed Drilling Machine
Description
| SPECIFCATIONS |
LGT-340A |
LGT-550A |
| Max. drilling capacity (dia.) |
Ø16mm |
Ø25mm |
| Max.tapping capacity (dia.) |
Ø13mm |
Ø19mm |
| Spindle Taper |
MT 2 |
MT 3 |
| Spindle Travel |
100mm |
140mm |
| Distance spindle to column |
180mm |
230mm |
| Number of speeds (steps) |
9 |
| Auto feed (mm/per rev.) |
— |
– |
| Spindle speed (RPM) (50Hz) |
190~2600 |
190~1850 |
| Diameter of Column |
Ø 80mm |
Ø 102mm |
| Round Table size |
Ø 320mm |
Ø 420mm |
| Distance Spindle to Table |
420mm |
630mm |
| Distance Spindle to Base |
620mm |
930mm |
| Motor |
1 HP |
2 HP |
| Overall height |
1070mm |
1540mm |
| Weight (net) |
90 kgs |
190 kgs |
| End |
