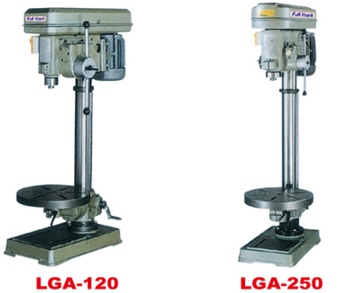

Automatic Feed Drilling Machine
Description
| SPECIFCATIONS |
LGA-120 |
LGA-250 |
| Max. drilling capacity (dia.) |
Ø 16mm |
Ø 25mm |
| Max.tapping capacity (dia.) |
= |
—- |
| Spindle Taper |
100mm |
MT 3 |
| Spindle Travel |
100mm |
140mm |
| Distance spindle to column |
180mm |
230mm |
| Number of speeds (steps) |
4 |
6 |
| Auto feed (mm/per rev.) |
0.12/0.10/0.07/0.05 |
0.04/0.06/0.08/ 0.10/0.12/0.14 |
| Spindle speed (RPM) (50Hz) |
480~1980 |
200~1600 |
| Diameter of Column |
Ø 80mm |
Ø 102mm |
| Round Table size |
Ø 320mm |
Ø 420mm |
| Distance Spindle to Table |
420mm |
630mm |
| Distance Spindle to Base |
620mm |
930mm |
| Motor |
Motor |
2 HP |
| Overall height |
1540mm |
| Weight (net) |
200 kgs |
| End |
